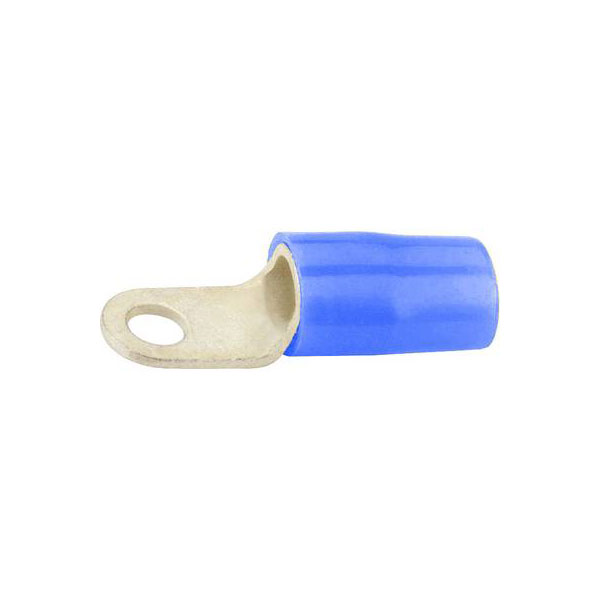

Vogt Connection Technology 3623A Ring Terminal Max 2.50mm² Hole Dia3.2mm Blue

Image Representative of Range

Vogt Connection Technology 3623A Ring Terminal Max 2.50mm² Hole Dia3.2mm Blue

Vogt Verbindungstechnik
Standard range
Order Code:

13-3756

Brand: Vogt Verbindungstechnik MPN: 3623A EAN-13: 2050000243677
Qty Unit Price (Ex VAT)
50+ £0.080
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
1,574 in stock, despatched in 4 working days

Vogt Verbindungstechnik manufactures the 3623A ring terminal, which is blue, partially insulated, and supports a maximum cross-section of 2.50 mm² with a hole diameter of 3.2 mm. This crimp connector is typically used in automotive and electrical applications involving wire connections. Ideal for ensuring secure, solder-free connections in various industrial settings.
Contact material Cathode copper, tin plated
Cross section 1.5 - 2.5mm²
Cross-section range 1.50 - 2.50 mm²
Factory colour Blue
Hole Ø 3.2mm
Insulation material PVC
Insulation type Partially insulated
Material (details) Tinned electrolytic copper (DIN 46237 / UL-No. E235797)
max. cross section 2.50mm²
Min. cross section 1.50mm²
RoHS-compliant Yes
Support sleeve No
Thread Size M3
Type Ring terminal
