Vogt Connection Technology 3611A Ring Terminal 1mm² 5.3mm Red Insulated

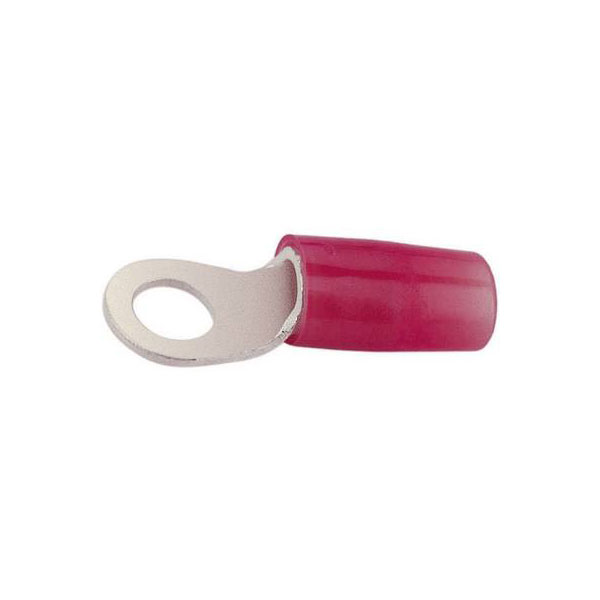

Image Representative of Range

Vogt Connection Technology 3611A Ring Terminal 1mm² 5.3mm Red Insulated

Vogt Verbindungstechnik
Standard range
Order Code:

13-3743

Brand: Vogt Verbindungstechnik MPN: 3611A EAN-13: 2050000243783
Qty Unit Price (Ex VAT)
1+ £0.099
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
256 in stock, despatched in 4 working days

The Vogt Verbindungstechnik 3611A is a red, partially insulated ring terminal with a cross section capacity of up to 1 mm² and a hole diameter of 5.3 mm. As a crimp connector, it is designed for solder-free application, providing a secure connection in automotive and other electrical systems. Typical uses include creating robust links between wires in various electronic and automotive assemblies.
Contact material Cathode copper, tin plated
Cross section 0.5 - 1.0mm²
Cross-section range 0.50 - 1 mm²
Dimensions (D3 x L x R) (10 x 18 x 6.50)mm
Factory colour Red
Hole Ø 5.3mm
Insulation material PVC
Insulation type Partially insulated
Material (details) Tinned electrolytic copper (DIN 46237 / UL-No. E235797)
max. cross section 1mm²
Min. cross section 0.50mm²
RoHS-compliant Yes
Support sleeve No
Thread Size M5
Type Ring terminal
