Vogt Connection Technology 3605A Ring Terminal 1mm² Hole Dia3.2mm Red Insulated

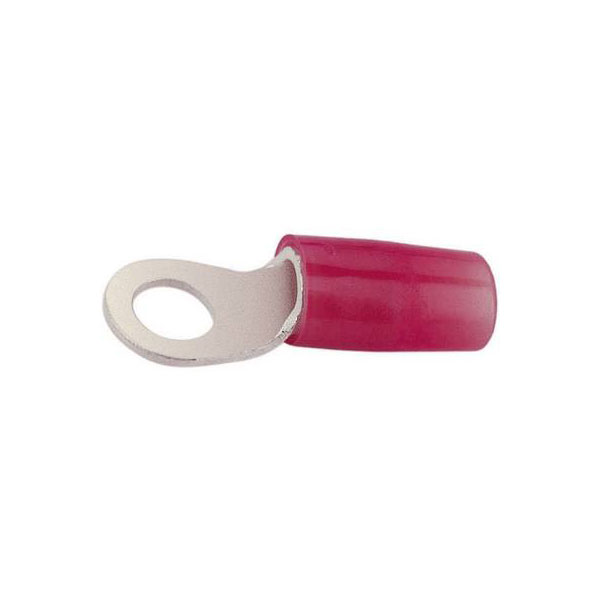

Image Representative of Range

Vogt Connection Technology 3605A Ring Terminal 1mm² Hole Dia3.2mm Red Insulated

Vogt Verbindungstechnik
Order Code:

13-3737

Brand: Vogt Verbindungstechnik MPN: 3605A EAN-13: 2050000243899
Qty Unit Price (Ex VAT)
50+ £0.080
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
3,439 in stock, despatched in 4 working days

Vogt Verbindungstechnik manufactures the 3605A ring terminal, which is partially insulated in red, suitable for cross sections up to 1 mm² with a 3.2 mm hole diameter. This crimp connector provides a secure, solder-free connection, ideal for automotive and electrical applications. It is typically used to terminate wiring and ensure reliable connections.
Colour Red
Insulated Partially insulated
Stud Size 3.2
Maximum Wire Size (mm2) 1 mm
Contact Material Cathode copper, tin plated
Cross Section 0.5 - 1.0mm²
Cross-section range 0.50 - 1 mm²
Dimensions (D3 x L x R) (6.5 x 16 x 6)mm
Hole Ø 3.2mm
Material (details) Tinned electrolytic copper (DIN 46237 / UL-No. E235797)
max. cross section 1mm²
Maximimum Wire Gauge (AWG) 17
Min. cross section 0.50mm²
Product Type Ring Terminal
Support sleeve No
Thread Size M3
