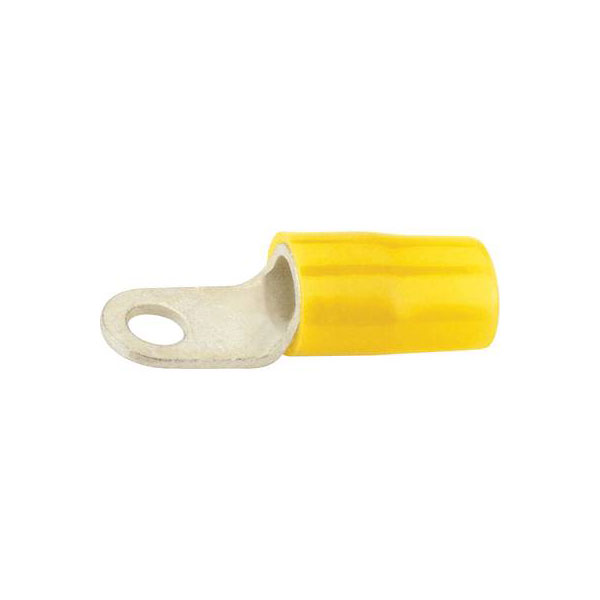

Vogt Connection Technology 3596A Ring Terminal 0.50mm² 3.2mm Hole Yellow

Vogt Verbindungstechnik manufactures the 3596A ring terminal, which has a maximum cross-section of 0.50 mm² and a hole diameter of 3.2 mm. This partially insulated yellow ring terminal is typically used in automotive or electrical applications for secure, solder-free connections. It is sold individually.

Colour	Yellow
Insulated	Partially insulated
Stud Size	3.2mm
Maximum Wire Size (mm2)	0.50mm
Contact Material	Cathode copper, tin plated
Cross Section	0.1 - 0.5mm²
Cross-section range	0.10 - 0.50mm²
Dimensions	(D3 x L x R) (5 x 14 x 5)mm
Hole Ø	3.2mm
Material (details)	Tinned electrolytic copper (DIN 46237 / UL-No. E235797)
max. cross section	0.50mm²
Maximimum Wire Gauge (AWG)	1
Min. cross section	0.10mm²
Product Type	Ring Terminal
Support sleeve	No
Thread Size	M3
