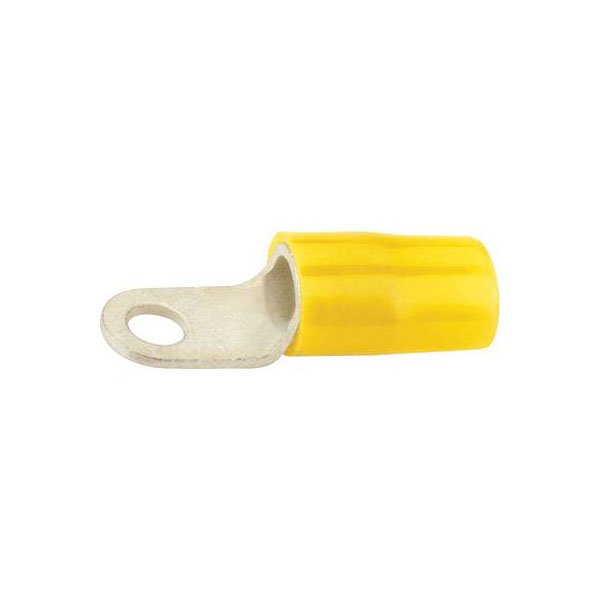

Vogt Connection Technology 3595A Ring Terminal 0.50 mm² 2.2 mm Yellow

The Vogt Verbindungstechnik ring terminal, part number 3595A, has a maximum cross-section of 0.50 mm² and a hole diameter of 2.2 mm, making it ideal for various connectivity solutions. This partially insulated yellow crimp connector is typically used in automotive and electronic applications for secure, solder-free connections. As a reliable component, it is particularly suited for use in car electrical systems and other installations that require robust and durable connections.

Contact material	Cathode copper, tin plated
Cross section	0.1 - 0.5mm²
Cross-section range	0.10 - 0.50 mm²
Dimensions	(D3 x L x R) (5 x 14 x 5)mm
Factory colour	Yellow
Hole Ø	2.2mm
Insulation material	Polyamide
Insulation type	Partially insulated
Material (details)	Tinned electrolytic copper (DIN 46237 / UL-No. E235797)
max. cross section	0.50mm²
Min. cross section	0.10mm²
RoHS-compliant	Yes
Support sleeve	No
Thread Size	M2
Type	Ring terminal
