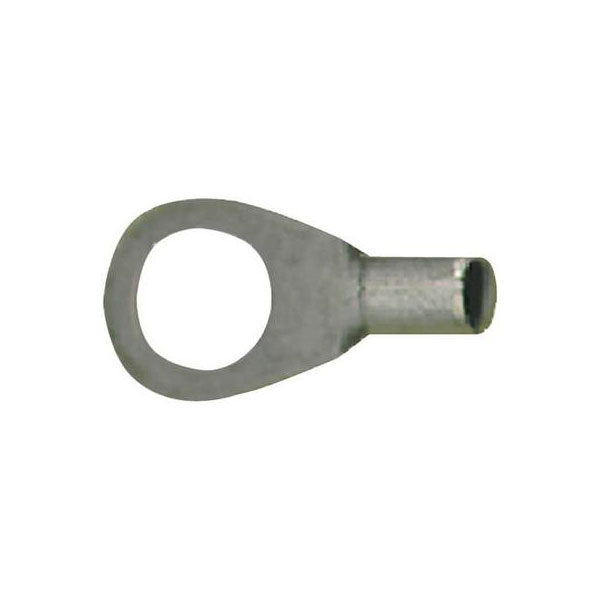

Vogt Connection Technology 3582A Ring Terminal 35mm² Max Not Insulated

Image Representative of Range

Vogt Connection Technology 3582A Ring Terminal 35mm² Max Not Insulated

Vogt Verbindungstechnik
Standard range
Order Code:

13-3729

Brand: Vogt Verbindungstechnik MPN: 3582A EAN-13: 2050000236594
Qty Unit Price (Ex VAT)
1+ £0.633
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
335 in stock, despatched in 4 working days

Vogt Verbindungstechnik manufactures the 3582A ring terminal, characterised by a maximum cross-section of 35 mm² and a hole diameter of 6.5 mm. Made from tinned electrolytic copper and not insulated, it is an excellent choice for automotive and electrical applications. The solderless design ensures ease of use in crimping processes.
Contact material Cathode copper, tin plated
Cross section 35mm²
Cross-section range 35 mm² (max)
Factory colour Metal
Hole Ø 6.5mm
Insulation type Not insulated
Material (details) Tinned electrolytic copper (DIN 46234 / UL-No. E235797)
max. cross section 35mm²
RoHS-compliant Yes
Support sleeve No
Thread Size M6
Type Ring terminal
