Vogt Connection Technology 3575A Ring Terminal 25mm² 8.4mm Hole Metal

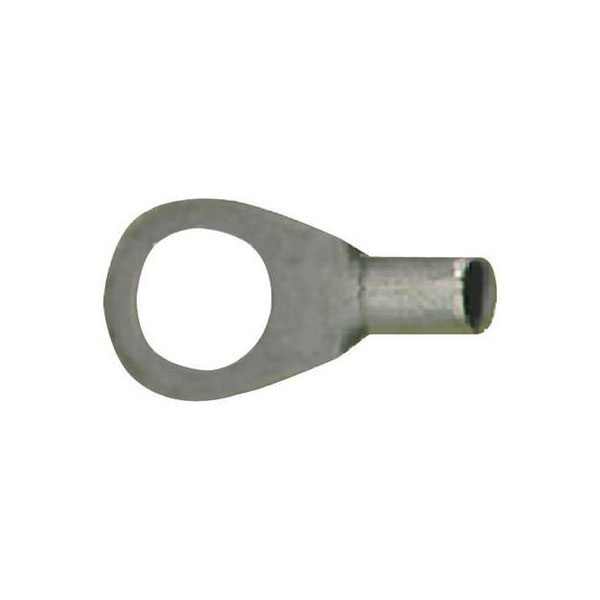

Image Representative of Range

Vogt Connection Technology 3575A Ring Terminal 25mm² 8.4mm Hole Metal

Vogt Verbindungstechnik
Standard range
Order Code:

13-3728

Brand: Vogt Verbindungstechnik MPN: 3575A EAN-13: 2050000236570
Qty Unit Price (Ex VAT)
1+ £0.514
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
305 in stock, despatched in 4 working days

The Vogt Verbindungstechnik 3575A ring terminal is made from tinned electrolytic copper and is designed for cables with a cross section of up to 25 mm². It features a hole diameter of 8.4 mm and is not insulated. This crimp connector is commonly used in automotive and other electrical applications requiring reliable connections.
Contact material Cathode copper, tin plated
Cross section 25mm²
Cross-section range 25 mm² (max)
Factory colour Metal
Hole Ø 8.4mm
Insulation type Not insulated
Material (details) Tinned electrolytic copper (DIN 46234 / UL-No. E235797)
max. cross section 25mm²
RoHS-compliant Yes
Support sleeve No
Thread Size M8
Type Ring terminal
