Vogt Connection Technology 3560A Ring Terminal 16mm² 5.3mm Hole Metal Un Ins

Image Representative of Range

Vogt Connection Technology 3560A Ring Terminal 16mm² 5.3mm Hole Metal Un Ins

Vogt Verbindungstechnik
Standard range
Order Code:

13-3724

Brand: Vogt Verbindungstechnik MPN: 3560A EAN-13: 2050000236501
Qty Unit Price (Ex VAT)
20+ £0.336
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
332 in stock, despatched in 4 working days

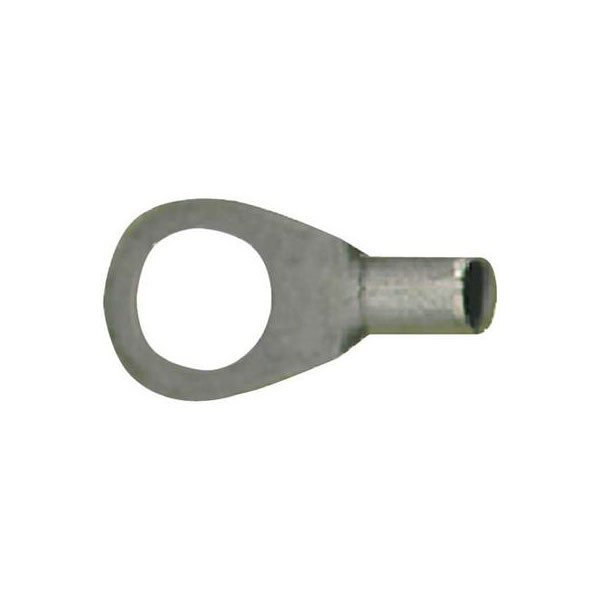

The Vogt Verbindungstechnik 3560A ring terminal is crafted from tinned electrolytic copper and accommodates a maximum cross-section of 16 mm² with a hole diameter of 5.3 mm. It is a solderless, non-insulated metal connector, ideal for automotive and electrical applications. The product is usually employed in situations requiring crimp connectors for secure and reliable electrical connections.
Contact material Cathode copper, tin plated
Cross section 16mm²
Cross-section range 16 mm² (max)
Factory colour Metal
Hole Ø 5.3mm
Insulation type Not insulated
Material (details) Tinned electrolytic copper (DIN 46234 / UL-No. E235797)
max. cross section 16mm²
RoHS-compliant Yes
Support sleeve No
Thread Size M5
Type Ring terminal
