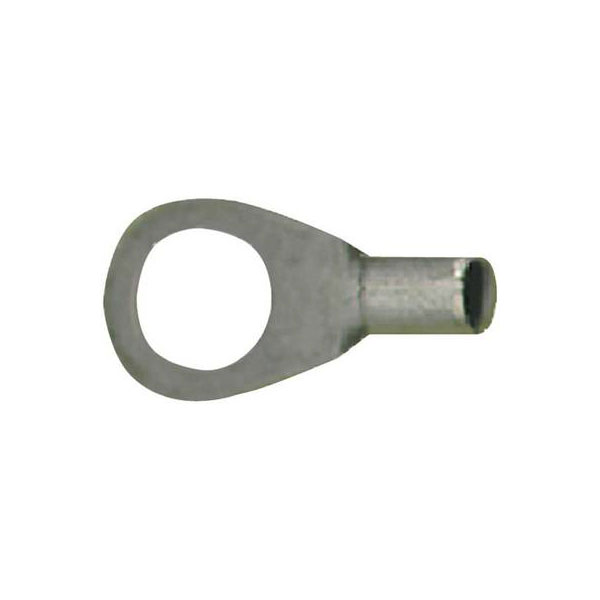

Vogt Connection Technology 3547A Ring Terminal 10mm² 5.3mm Hole Metal

Image Representative of Range

Vogt Connection Technology 3547A Ring Terminal 10mm² 5.3mm Hole Metal

Vogt Verbindungstechnik
Standard range
Order Code:

13-3722

Brand: Vogt Verbindungstechnik MPN: 3547A EAN-13: 2050000236433
Qty Unit Price (Ex VAT)
20+ £0.218
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
3,359 in stock, despatched in 4 working days

The Vogt Verbindungstechnik 3547A ring terminal is made from tinned electrolytic copper and can handle cross-sections up to 10 mm² with a hole diameter of 5.3 mm. This non-insulated, solderless cable lug is ideal for automotive or general electrical connections. It is a crimp connector suitable for secure, reliable terminations in various applications.
Contact material Cathode copper, tin plated
Cross section 10mm²
Cross-section range 10 mm² (max)
Factory colour Metal
Hole Ø 5.3mm
Insulation type Not insulated
Material (details) Tinned electrolytic copper (DIN 46234 / UL-No. E235797)
max. cross section 10mm²
RoHS-compliant Yes
Support sleeve No
Thread Size M5
Type Ring terminal
