Vogt Connection Technology 3530A Ring Terminal 6mm² Hole Dia4.3mm Uninsulated

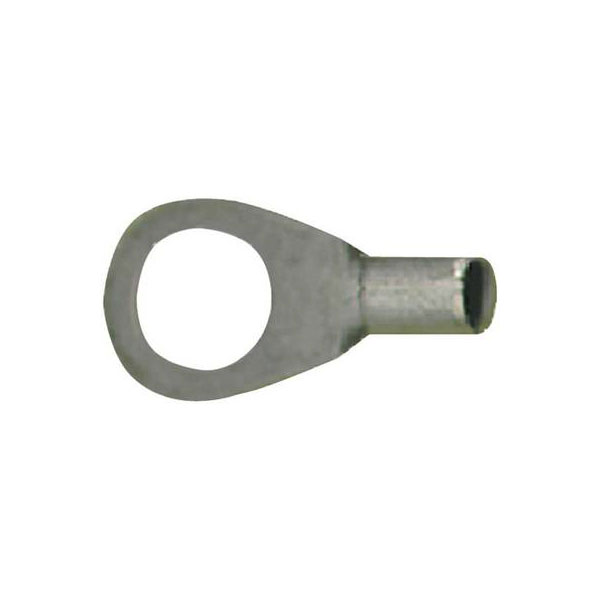

Image Representative of Range

Vogt Connection Technology 3530A Ring Terminal 6mm² Hole Dia4.3mm Uninsulated

Vogt Verbindungstechnik
Order Code:

13-3715

Brand: Vogt Verbindungstechnik MPN: 3530A EAN-13: 2050000236358
Qty Unit Price (Ex VAT)
50+ £0.159
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
1,129 in stock, despatched in 4 working days

Vogt Verbindungstechnik's 3530A ring terminal is made of tinned electrolytic copper and can accommodate cables with a maximum cross section of 6 mm². With a hole diameter of 4.3 mm, it is designed for secure connections without the need for soldering. This non-insulated terminal is suitable for automotive and other durable crimp connection applications.
Colour Metal
Insulated Not insulated
Stud Size 4.3mm
Maximum Wire Size (mm2) 6mm²
Contact Material Cathode copper, tin plated
Cross Section 4 - 6mm²
Cross-section range 4 - 6 mm²
Hole Ø 4.3mm
Material (details) Tinned electrolytic copper (DIN 46234 / UL-No. E235797)
max. cross section 6mm²
Maximimum Wire Gauge (AWG) 10
Min. cross section 4mm²
Product Type Ring Terminal
Support sleeve No
Thread Size M4
