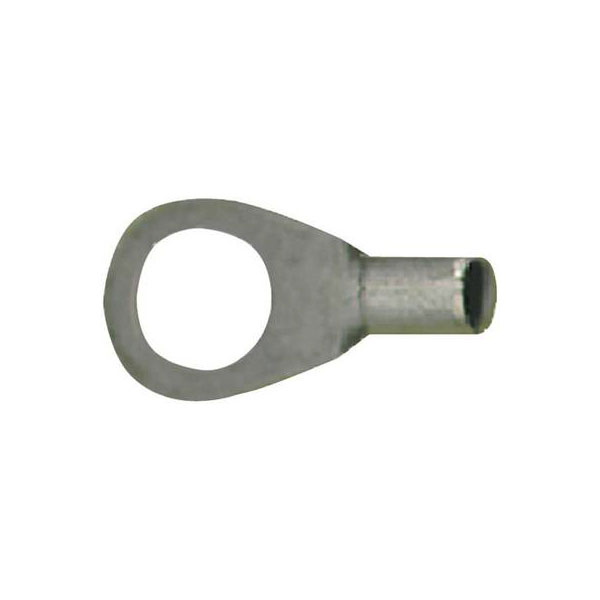

Vogt Connection Technology 3523A Ring Terminal 2.50 mm² 6.5 mm Hole Metal

Vogt Verbindungstechnik manufactures the 3523A ring terminal, designed with a maximum cross-section of 2.50 mm² and a hole diameter of 6.5 mm. This non-insulated terminal is made from tinned electrolytic copper, ideal for solder-free connections. It is commonly used in automotive and other electrical applications requiring reliable crimp connections.

Colour	Metal
Insulated	Not insulated
Stud Size	6.5mm
Maximum Wire Size (mm2)	2.50mm²
Contact Material	Cathode copper, tin plated
Cross Section	1.5 - 2.5mm²
Cross-section range	1.50 - 2.50mm²
Hole Ø	6.5mm
Material (details)	Tinned electrolytic copper (DIN 46234 / UL-No. E235797)
max. cross section	2.50mm²
Maximimum Wire Gauge (AWG)	14
Min. cross section	1.50mm²
Product Type	Ring Terminal
Support sleeve	No
Thread Size	M6
