Vogt Connection Technology 3521A Ring Terminal 2.50mm² 5.3mm Metal Uninsulated

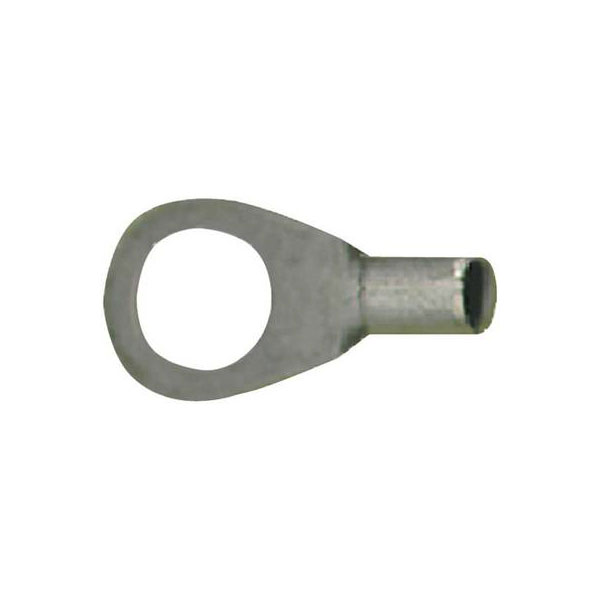

Image Representative of Range

Vogt Connection Technology 3521A Ring Terminal 2.50mm² 5.3mm Metal Uninsulated

Vogt Verbindungstechnik
Standard range
Order Code:

13-3712

Brand: Vogt Verbindungstechnik MPN: 3521A EAN-13: 2050000236310
Qty Unit Price (Ex VAT)
50+ £0.099
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
1,806 in stock, despatched in 4 working days

The Vogt Verbindungstechnik 3521A is a non-insulated ring terminal designed for wires with a cross-section up to 2.50 mm² and features a 5.3 mm hole diameter. Made from tinned electrolytic copper, it is suitable for automotive and electrical applications where a reliable crimp connection is required. The product is packaged as a single piece and is solder-free for easy installation.
Contact material Cathode copper, tin plated
Cross section 1.5 - 2.5mm²
Cross-section range 1.50 - 2.50 mm²
Factory colour Metal
Hole Ø 5.3mm
Insulation type Not insulated
Material (details) Tinned electrolytic copper (DIN 46234 / UL-No. E235797)
max. cross section 2.50mm²
Min. cross section 1.50mm²
RoHS-compliant Yes
Support sleeve No
Thread Size M5
Type Ring terminal
