Vogt Connection Technology 3508A Ring Terminal 1mm² Hole Dia4.3mm Non-Insulated

Image Representative of Range

Vogt Connection Technology 3508A Ring Terminal 1mm² Hole Dia4.3mm Non-Insulated

Vogt Verbindungstechnik
Standard range
Order Code:

13-3702

Brand: Vogt Verbindungstechnik MPN: 3508A EAN-13: 2050000236259
Qty Unit Price (Ex VAT)
50+ £0.080
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
7,324 in stock, despatched in 4 working days

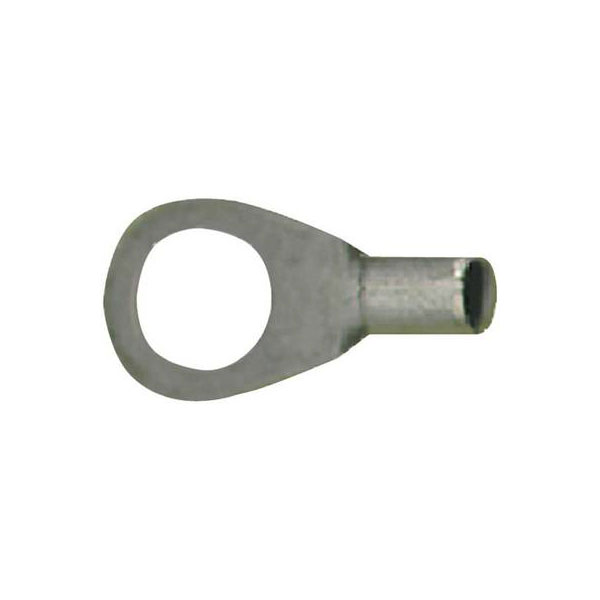

Vogt Verbindungstechnik's 3508A ring terminal is crafted from tinned electrolytic copper, with a maximum cross-section of 1 mm² and a hole diameter of 4.3 mm. This non-insulated, solderless crimp connector is ideal for automotive and electrical applications. It ensures a secure and reliable connection for various wiring needs.
Contact material Cathode copper, tin plated
Cross section 0.5 - 1.0mm²
Cross-section range 0.50 - 1 mm²
Factory colour Metal
Hole Ø 4.3mm
Insulation type Not insulated
Material (details) Tinned electrolytic copper (DIN 46234 / UL-No. E235797)
max. cross section 1mm²
Min. cross section 0.50mm²
RoHS-compliant Yes
Support sleeve No
Thread Size M4
Type Ring terminal
