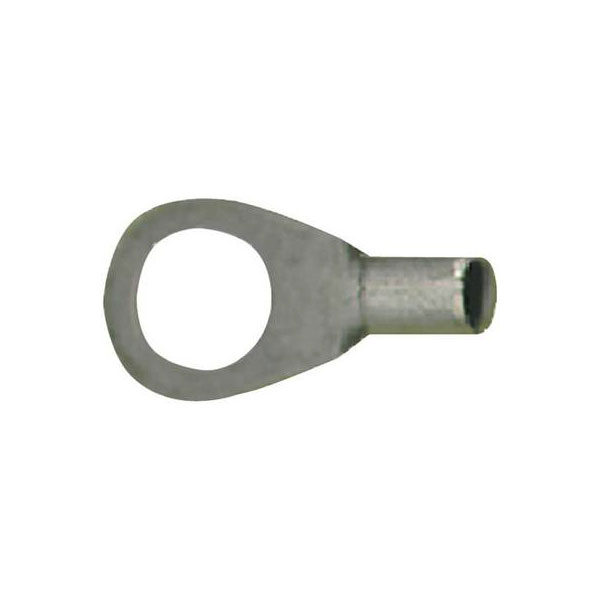

Vogt Connection Technology 3502A Ring Terminal 1mm² 3.2mm Non-Insulated Metal

Image Representative of Range

Vogt Connection Technology 3502A Ring Terminal 1mm² 3.2mm Non-Insulated Metal

Vogt Verbindungstechnik
Order Code:

13-3700

Brand: Vogt Verbindungstechnik MPN: 3502A EAN-13: 2050000236242
Qty Unit Price (Ex VAT)
100+ £0.060
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
1,140 in stock, despatched in 4 working days

The Vogt Verbindungstechnik 3502A ring terminal is made from tinned electrolytic copper. It features a 3.2 mm diameter hole and accommodates cables with a cross-section up to 1 mm². This non-insulated ring terminal is suitable for automotive and industrial crimping applications.
Colour Metal
Insulated Not insulated
Stud Size 3.2
Maximum Wire Size (mm2) 1 mm
Contact Material Cathode copper, tin plated
Cross Section 0.5 - 1.0mm²
Cross-section range 0.50 - 1 mm²
Hole Ø 3.2mm
Material (details) Tinned electrolytic copper (DIN 46234 / UL-No. E235797)
max. cross section 1mm²
Maximimum Wire Gauge (AWG) 17
Min. cross section 0.50mm²
Product Type Ring Terminal
Support sleeve No
Thread Size M3
