Vogt Connection Technology 3492A Ring Terminal 0.50 mm² Dia3.2 mm Non-Insulated

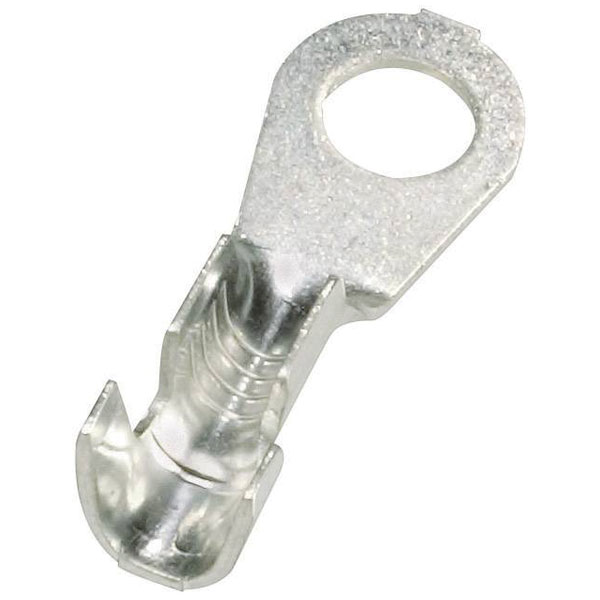

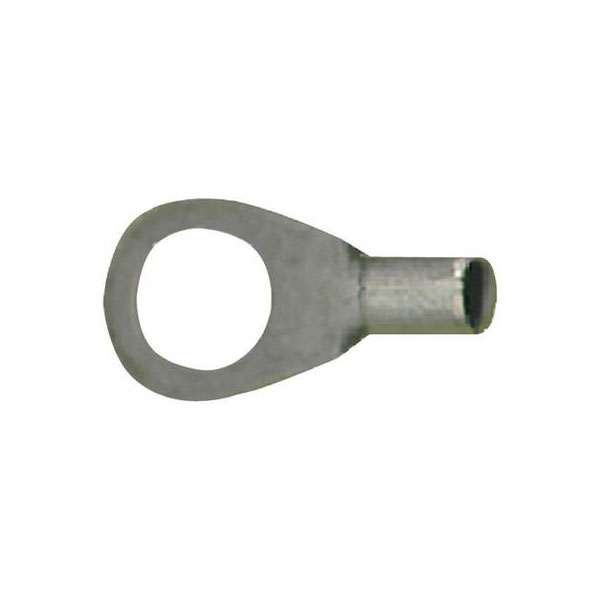

Image Representative of Range

Vogt Connection Technology 3492A Ring Terminal 0.50 mm² Dia3.2 mm Non-Insulated

Standard range
Order Code:

13-3698

Brand: Vogt Verbindungstechnik MPN: 3492A EAN-13: 2050000236235
Qty Unit Price (Ex VAT)
100+ £0.060
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
2,254 in stock, despatched in 4 working days

The Vogt Verbindungstechnik 3492A ring terminal is made of tinned electrolytic copper and supports a maximum cross-section of 0.50 mm² with a hole diameter of 3.2 mm. It is a non-insulated, solderless cable lug designed for secure connections in automotive and electronic applications. Typically used in crimp connectors, this terminal facilitates efficient electrical wiring in various setups.
Contact material Cathode copper, tin plated
Cross section 0.1 - 0.5mm²
Cross-section range 0.10 - 0.50 mm²
Factory colour Metal
Hole Ø 3.2mm
Insulation type Not insulated
Material (details) Tinned electrolytic copper (DIN 46234 / UL-No. E235797)
max. cross section 0.50mm²
Min. cross section 0.10mm²
RoHS-compliant Yes
Support sleeve No
Thread Size M3
Type Ring terminal
