Vogt Connection Technology 3330A.67 Ring Terminal 2.50mm² Hole Dia3.2mm Metal

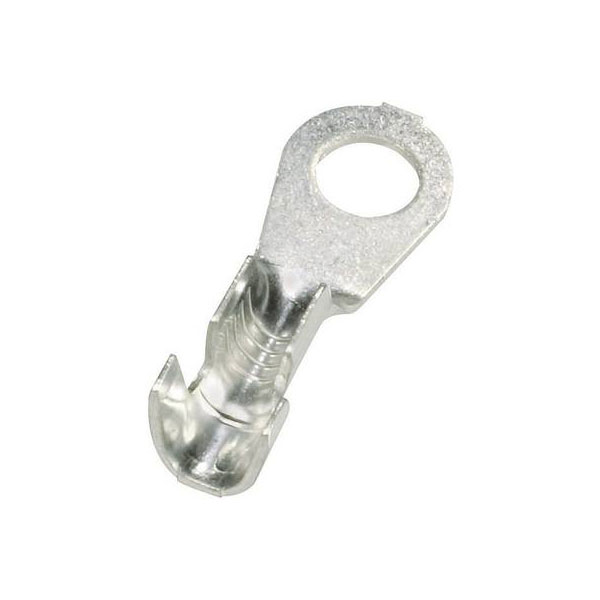

Image Representative of Range

Vogt Connection Technology 3330A.67 Ring Terminal 2.50mm² Hole Dia3.2mm Metal

Vogt Verbindungstechnik
Standard range
Order Code:

13-3678

Brand: Vogt Verbindungstechnik MPN: 3330A.67 EAN-13: 2050000409424
Qty Unit Price (Ex VAT)
1+ £0.119
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
1,398 in stock, despatched in 4 working days

The Vogt Verbindungstechnik 3330A.67 is a metal ring terminal with a maximum cross-section of 2.50 mm² and a hole diameter of 3.2 mm, designed for easy crimp connection. It is not insulated, making it suitable for environments where insulation is not required. Common applications include automotive and electrical installations where robust and reliable connections are essential.
AWG (min.) 16
AWG max. 14
Certification marks DIN 46 225
Contact material Brass tin plated
Cross section 1.5 - 2.5mm²
Cross-section range 1.50 - 2.50 mm²
Dimensions ØD x ØD1 x L x A1 x A2 x S 3.2 x 8 x 18 x 9 x 4.5 x 0.6 mm
Factory colour Metal
Hole Ø 3.2mm
Insulation type Not insulated
Material (details) Brass, purely tin-plated
max. cross section 2.50mm²
Min. cross section 1.50mm²
RoHS-compliant Yes
Support sleeve No
Thread Size M3
Type Ring terminal
