Vogt Connection Technology 3316A.67 Ring Terminal 1mm² 4.3mm Hole Metal

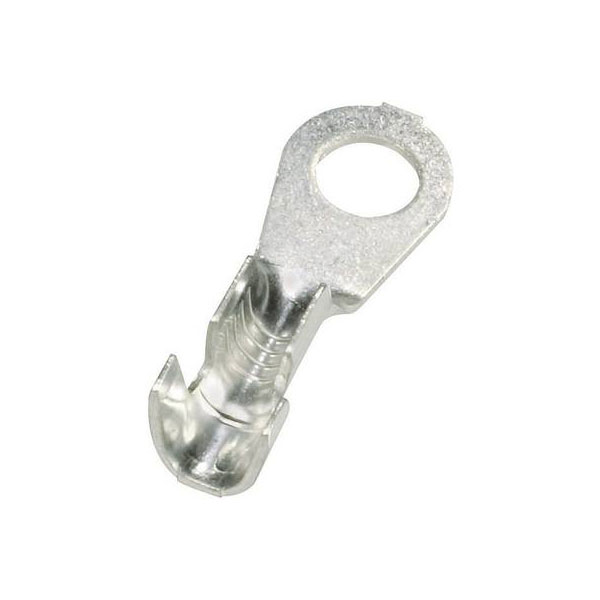

Image Representative of Range

Vogt Connection Technology 3316A.67 Ring Terminal 1mm² 4.3mm Hole Metal

Vogt Verbindungstechnik
Order Code:

13-3676

Brand: Vogt Verbindungstechnik MPN: 3316A.67 EAN-13: 2050000409400
Qty Unit Price (Ex VAT)
25+ £0.178
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
700 in stock, despatched in 4 working days

The Vogt Verbindungstechnik 3316A.67 is a metal ring terminal with a maximum cross-section of 1 mm² and a hole diameter of 4.3 mm. It is not insulated and designed as a crimp connector for secure, solder-free connections. Typically used in automotive applications, this product facilitates reliable electrical connections.
Colour Metal
Insulated Not insulated
Stud Size 4.3mm
Maximum Wire Size (mm2) 1 mm
AWG (min.) 22
Certification marks DIN 46 225
Contact Material Brass tin plated
Cross Section 5 - 1.0mm²
Cross-section range 0.50 - 1 mm²
Dimensions ØD x ØD1 x L x A1 x A2 x S 4.3 x 8 x 18 x 9 x 4.5 x 0.6 mm
Hole Ø 4.3mm
Material (details) Brass, purely tin-plated
max. cross section 1mm²
Maximimum Wire Gauge (AWG) 18
Min. cross section 0.50mm²
Product Type Ring Terminal
Support sleeve No
Thread Size M4
