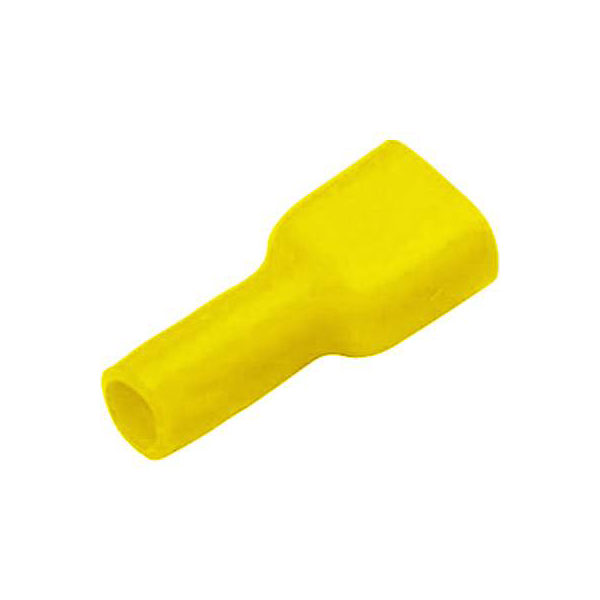

Vogt 3972S Blade Terminal 6.3mm Width 0.8mm Thickness Insulated Yellow

Image Representative of Range

Vogt 3972S Blade Terminal 6.3mm Width 0.8mm Thickness Insulated Yellow

Vogt Verbindungstechnik
Extended range
Order Code:

13-4070

Brand: Vogt Verbindungstechnik MPN: 3972S EAN-13: 2050000242083
Qty Unit Price (Ex VAT)
25+ £0.178
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
Available to back orderBack order, lead time 4 weeks

The Vogt Verbindungstechnik 3972S is an insulated yellow blade terminal with a connector width of 6.3 mm and a thickness of 0.8 mm. This crimp connector is typically used in electrical applications for secure and reliable connections. Its insulated design ensures safety and prevents short circuits in various electronic and automotive settings.
Connection angle 180°
Connector thickness 0.8mm
Connector width 6.3mm
Contact material Brass tin plated
Cross section 4 - 6mm²
Cross-section range 4 - 6 mm²
Factory colour Yellow
Insulation Full PA insulation
Insulation material PA 6.6
Insulation type Insulated
Material (details) Brass, tin-plated
max. cross section 6mm²
Min. cross section 4mm²
Misc Attribute 1 6.3 x 0.8
Misc Attribute 2 connector
RoHS-compliant Yes
Size 6.3 x 0.8 mm
Support sleeve No
Type Blade terminal
