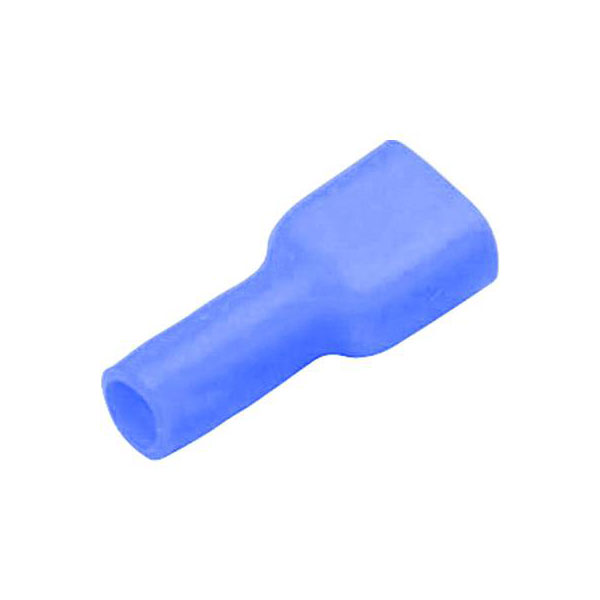

Vogt 3970 Blade Terminal 6.3x0.8mm 180° Insulated Blue 1 piece

Image Representative of Range

Vogt 3970 Blade Terminal 6.3x0.8mm 180° Insulated Blue 1 piece

Vogt Verbindungstechnik
Standard range
Order Code:

13-4067

Brand: Vogt Verbindungstechnik MPN: 3970 EAN-13: 2050000242250
Qty Unit Price (Ex VAT)
20+ £0.218
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
1,083 in stock, despatched in 4 working days

The Vogt Verbindungstechnik 3970 is a blue insulated blade terminal with a connector width of 6.3 mm and thickness of 0.8 mm. It's typically used in electrical applications requiring secure connections, such as automotive wiring and industrial machinery. This crimp connector is designed for ease of installation and reliable insulation.
Connection angle 180°
Connector thickness 0.8mm
Connector width 6.3mm
Contact material Brass tin plated
Cross section 1.5 - 2.5mm²
Cross-section range 1.50 - 2.50 mm²
Factory colour Blue
Insulation Full PA insulation
Insulation material PA 6.6
Insulation type Insulated
Material (details) Brass, tin-plated
max. cross section 2.50mm²
Min. cross section 1.50mm²
Misc Attribute 1 connector
Misc Attribute 2 6.3 x 0.8
RoHS-compliant Yes
Size 6.3 x 0.8 mm
Support sleeve Yes
Type Blade terminal
