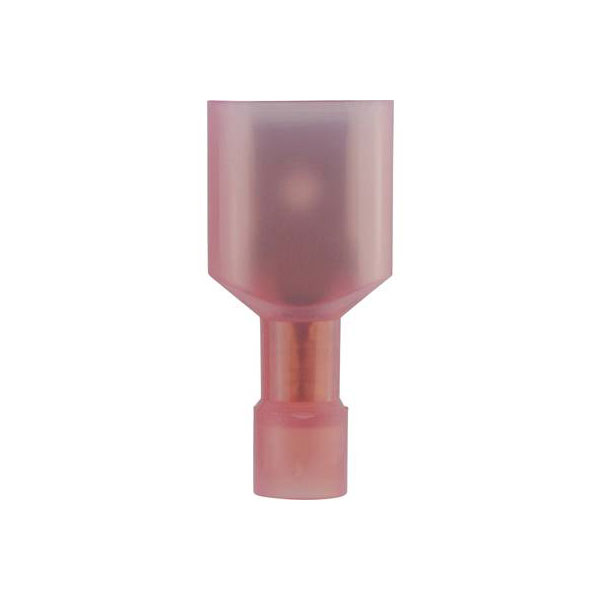

Vogt 3959S Blade Terminal 6.3mm Width 0.8mm Thick 180° Red Insulated

Image Representative of Range

Vogt 3959S Blade Terminal 6.3mm Width 0.8mm Thick 180° Red Insulated

Vogt Verbindungstechnik
Standard range
Order Code:

13-4038

Brand: Vogt Verbindungstechnik MPN: 3959S EAN-13: 2050000242359
Qty Unit Price (Ex VAT)
50+ £0.159
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
2,212 in stock, despatched in 4 working days

The Vogt Verbindungstechnik 3959S is a partially insulated, red blade terminal with a connector width of 6.3 mm and thickness of 0.8 mm. It is designed for secure electrical connections in automotive and industrial applications. This crimp connector provides reliable performance for wiring systems.
Connection angle 180°
Connector thickness 0.8mm
Connector width 6.3mm
Contact material Brass tin plated
Cross section 0.5 - 1.0mm²
Cross-section range 0.50 - 1 mm²
Factory colour Red
Insulation PA part-insulation
Insulation material PA 6.6
Insulation type Partially insulated
Material (details) Brass, tin-plated
max. cross section 1mm²
Min. cross section 0.50mm²
Misc Attribute 1 6.3 x 0.8
Misc Attribute 2 connector
RoHS-compliant Yes
Size 6.3 x 0.8 mm
Support sleeve No
Type Blade terminal
