Vogt 393408S Blade Terminal 4.8mm Width 0.8mm Thick Blue Insulated

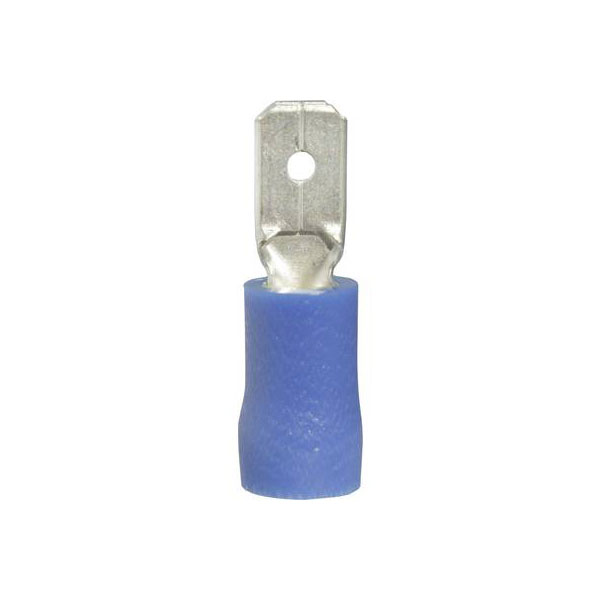

Image Representative of Range

Vogt 393408S Blade Terminal 4.8mm Width 0.8mm Thick Blue Insulated

Vogt Verbindungstechnik
Standard range
Order Code:

13-4016

Brand: Vogt Verbindungstechnik MPN: 393408S EAN-13: 2050000241581
Qty Unit Price (Ex VAT)
1+ £0.099
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
1,455 in stock, despatched in 4 working days

The Vogt Verbindungstechnik 393408S is a partially insulated blue blade terminal with a connector width of 4.8 mm and a thickness of 0.8 mm. It is typically used in electrical applications for reliable crimp connections. This component is well-suited for securing cables with sizes ranging from 1.5 to 2.5 mm².
Connection angle 180°
Connector thickness 0.8mm
Connector width 4.8mm
Contact material Brass tin plated
Cross section 1.5 - 2.5mm²
Cross-section range 1.50 - 2.50 mm²
Factory colour Blue
Insulation PVC part-insulation
Insulation material PVC
Insulation type Partially insulated
Material (details) Brass, tin-plated
max. cross section 2.50mm²
Min. cross section 1.50mm²
Misc Attribute 1 4.8 x 0.5 mm
Misc Attribute 2 connector
RoHS-compliant Yes
Size 4.8 x 0.8 mm
Support sleeve No
Type Blade terminal
