Vogt 3924N Quick-Connect Clip Flexible/Fixed: 0.2-0.5mm² 2 Pins

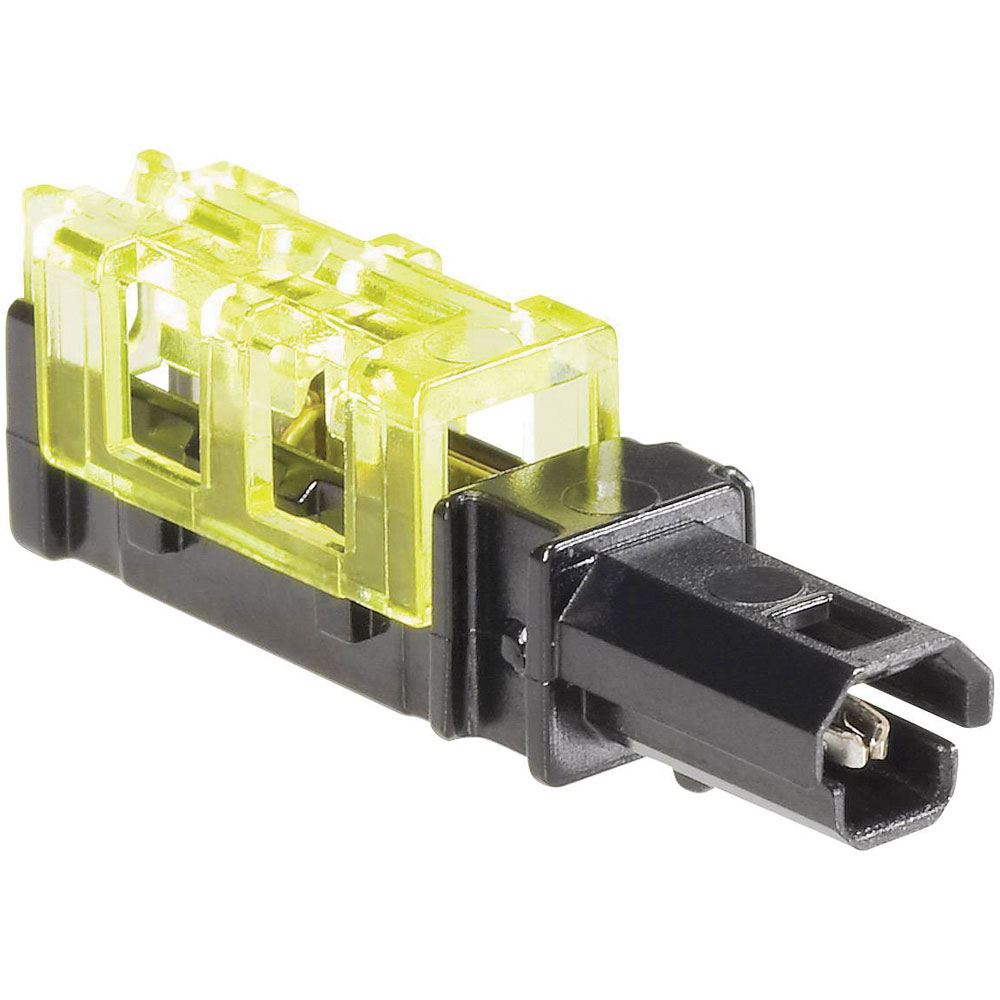

Image Representative of Range

Vogt 3924N Quick-Connect Clip Flexible/Fixed: 0.2-0.5mm² 2 Pins

Vogt Verbindungstechnik
Standard range
Order Code:

13-3998

Brand: Vogt Verbindungstechnik MPN: 3924N EAN-13: 2050001638854
Qty Unit Price (Ex VAT)
10+ £0.692
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
369 in stock, despatched in 4 working days

Vogt Verbindungstechnik's 3924N Quick-Connect clip is designed for flexible and fixed wires ranging from 0.2-0.5 mm² and features two pins. This black and yellow connector ensures reliable connections, making it suitable for European standard terminals. It is commonly used in electrical installations requiring secure and efficient wire-to-wire connections.
AWG 24 - 20
Connection Cut & Clip
Contact material Cadmium free (Ag-alloy)
Cross section (flexible) (max.) 0.5mm²
Cross section (flexible) (min.) 0.2mm²
Cross section (inflexible) (max.) 0.5mm²
Cross section (inflexible) (min.) 0.2mm²
Dim (L x W) 25.8 mm x 5.6 mm
Length 25.8mm
Nominal current 2A
Nominal current - rounded value 2A
Nominal voltage 100V
Number of pins 2
RoHS-compliant Yes
Temperature range -20 - +75°C
Type Quick-Connect clip
Width 5.6mm
