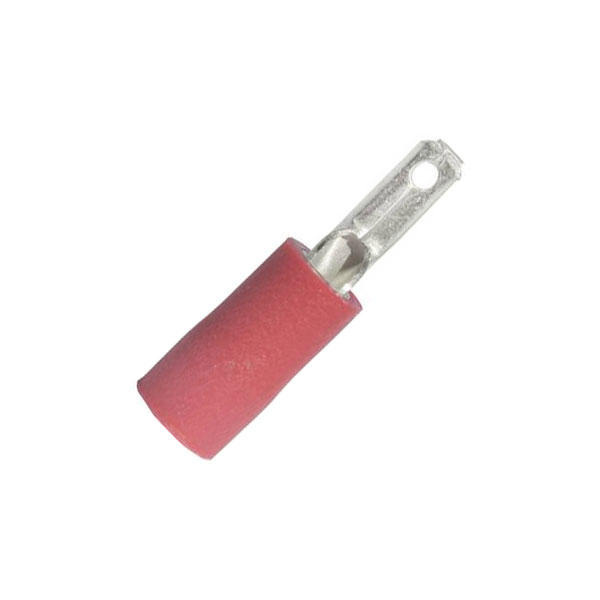

Vogt 391308 Blade Terminal 2.8x0.8mm 180° Partially Insulated Red

Image Representative of Range

Vogt 391308 Blade Terminal 2.8x0.8mm 180° Partially Insulated Red

Vogt Verbindungstechnik
Standard range
Order Code:

13-3979

Brand: Vogt Verbindungstechnik MPN: 391308 EAN-13: 2050000242403
Qty Unit Price (Ex VAT)
25+ £0.198
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
886 in stock, despatched in 4 working days

Vogt Verbindungstechnik blade terminal (part number 391308) features a connector width of 2.8 mm and thickness of 0.8 mm, with partial insulation and a 180-degree design. It is commonly used for electrical connections in various applications due to its reliability and secure crimping capability. The terminal is red, assisting in differentiation during installation processes.
Connection angle 180°
Connector thickness 0.8mm
Connector width 2.8mm
Contact material Brass tin plated
Cross section 0.5 - 1.0mm²
Cross-section range 0.50 - 1 mm²
Factory colour Red
Insulation PVC part-insulation
Insulation material PVC
Insulation type Partially insulated
Material (details) Brass, tin-plated
max. cross section 1mm²
Min. cross section 0.50mm²
Misc Attribute 1 2.8 x 0.8 mm
Misc Attribute 2 connector
RoHS-compliant Yes
Size 2.8 x 0.8 mm
Support sleeve Yes
Type Blade terminal
