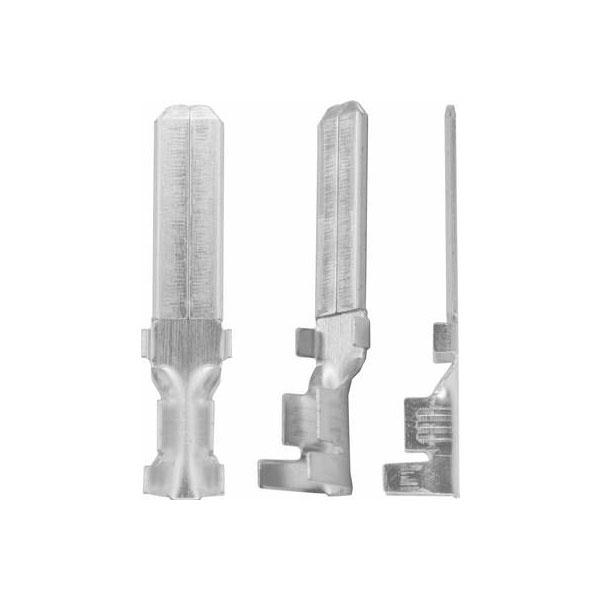

Vogt 3836A.67 Blade Terminal 6.3mm Width 0.8mm Thickness 180° Metal

Image Representative of Range

Vogt 3836A.67 Blade Terminal 6.3mm Width 0.8mm Thickness 180° Metal

Vogt Verbindungstechnik
Standard range
Order Code:

13-3902

Brand: Vogt Verbindungstechnik MPN: 3836A.67 EAN-13: 2050000243950
Qty Unit Price (Ex VAT)
1+ £0.119
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
1,379 in stock, despatched in 4 working days

The Vogt Verbindungstechnik 3836A.67 is a metal blade terminal with a connector width of 6.3 mm and a thickness of 0.8 mm, designed for 180° connections. This non-insulated spade connector is typically used in crimp applications within electrical systems. Ideal for use in various electronics and automotive wiring contexts, it provides secure and reliable connectivity.
Connection angle 180°
Connector thickness 0.8mm
Connector width 6.3mm
Contact material Brass tin plated
Cross section 0.5 - 1.0mm²
Cross-section range 0.50 - 1 mm²
Factory colour Metal
Insulation type Not insulated
Material (details) Brass
max. cross section 1mm²
Min. cross section 0.50mm²
Misc Attribute 1 6.3 x 0.8 mm
RoHS-compliant Yes
Size 6.3 x 0.8 mm
Support sleeve No
Surface Tin plated
Type Blade terminal
