Vogt 379908.60 Blade Terminal 2.8mm Width 0.8mm Thickness Metal Uninsulated

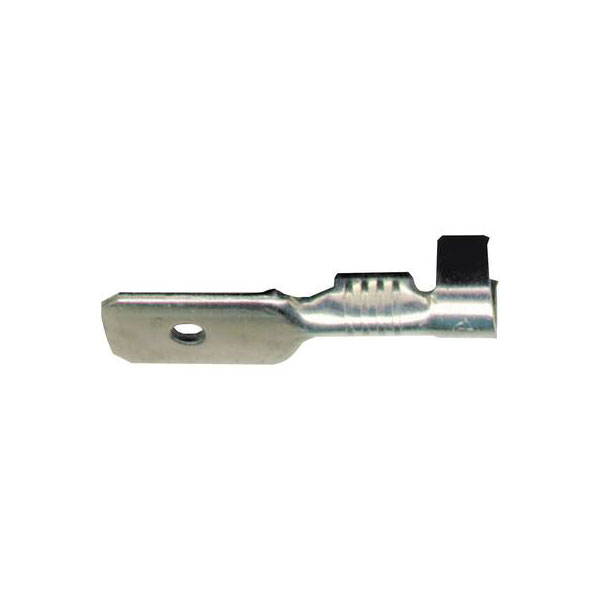

Image Representative of Range

Vogt 379908.60 Blade Terminal 2.8mm Width 0.8mm Thickness Metal Uninsulated

Vogt Verbindungstechnik
Standard range
Order Code:

13-3871

Brand: Vogt Verbindungstechnik MPN: 379908.60 EAN-13: 2050000242984
Qty Unit Price (Ex VAT)
1+ £0.080
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
4,171 in stock, despatched in 4 working days

Vogt Verbindungstechnik offers a blade terminal with a width of 2.8 mm and a thickness of 0.8 mm. It is a non-insulated, polished brass connector typically used in crimp connections. This terminal is suitable for reliable electrical connections in automotive and electronic applications.
Connection angle 180°
Connector thickness 0.8mm
Connector width 2.8mm
Contact material Brass
Cross section 0.5 - 1.0mm²
Cross-section range 0.50 - 1 mm²
Factory colour Metal
Insulation type Not insulated
Material (details) Brass
max. cross section 1mm²
Min. cross section 0.50mm²
Misc Attribute 1 2.8 x 0.8 mm
RoHS-compliant Yes
Size 2.8 x 0.8 mm
Support sleeve No
Surface Polished
Type Blade terminal
