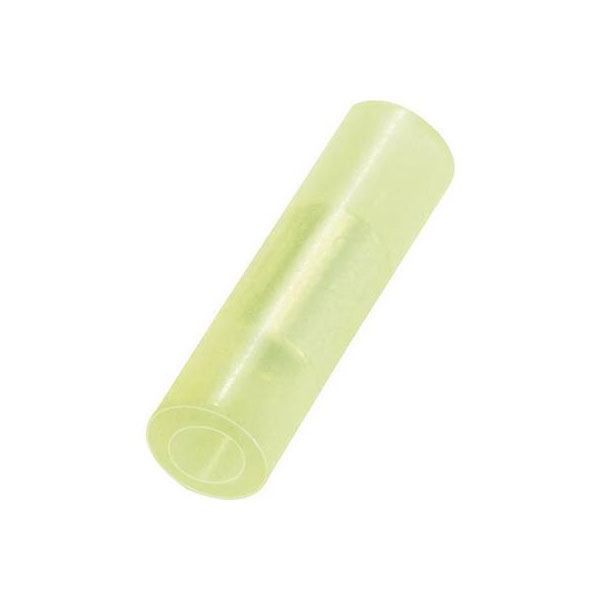

Vogt 3714 Connector Parallel 0.10-0.50 mm² Insulated Yellow 1 piece

Image Representative of Range

Vogt 3714 Connector Parallel 0.10-0.50 mm² Insulated Yellow 1 piece

Vogt Verbindungstechnik
Standard range
Order Code:

13-3812

Brand: Vogt Verbindungstechnik MPN: 3714 EAN-13: 2050000410161
Qty Unit Price (Ex VAT)
1+ £0.119
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
1,027 in stock, despatched in 4 working days

The Vogt Verbindungstechnik 3714 parallel connector is an insulated crimp connector suitable for wire sizes between 0.10 mm² and 0.50 mm². It features a yellow insulation, providing clear visibility and easy identification. This component is typically used in electrical applications requiring secure and reliable connections.
AWG (min.) 26
AWG max. 22
Contact material Cathode copper, tin plated
Cross section 0.1 - 0.5mm²
Cross-section range 0.10 - 0.50 mm²
Dim Ø D1 x Ø D2 x L x L1 x S 1,2 x 2 x 13 x 5 x 0,4 mm
Dimensions Ø D1 x Ø D2 x L x L1 x S 1,2 x 2 x 13 x 5 x 0,4 mm
Factory colour Yellow
Inside diameter 1.2mm
Insulation material PA
Insulation type Insulated
Length 13mm
Material (details) E-Cu sn
max. cross section 0.50mm²
Min. cross section 0.10mm²
Outside Ø 2mm
RoHS-compliant Yes
Temperature range -55 - +105°C
Type Parallel connector
Wall thickness (details) 0.4mm
