Vogt 3703 Connector 10mm² Parallel Tin-Plated Electrolyte Copper

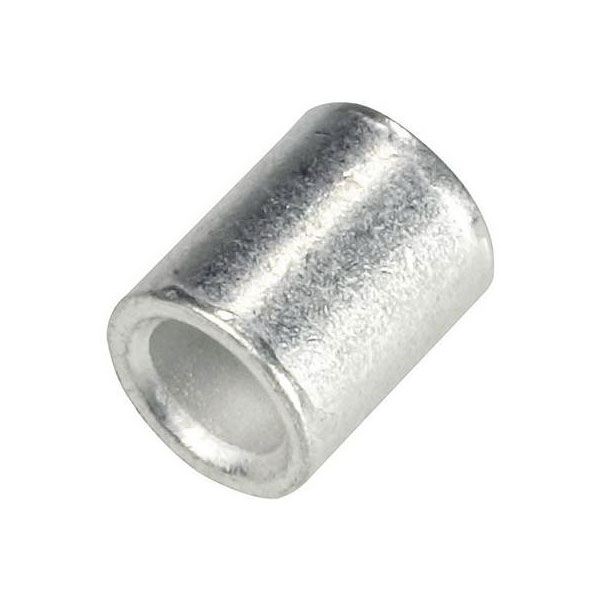

Image Representative of Range

Vogt 3703 Connector 10mm² Parallel Tin-Plated Electrolyte Copper

Vogt Verbindungstechnik
Standard range
Order Code:

13-3809

Brand: Vogt Verbindungstechnik MPN: 3703 EAN-13: 2050000409905
Qty Unit Price (Ex VAT)
20+ £0.396
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
1,176 in stock, despatched in 4 working days

The Vogt Verbindungstechnik 3703 is a parallel connector designed for 10 mm² conductors and is crafted from metal without insulation. This crimp connector features dimensions of 4.5x9x1.1 mm and is ideal for creating secure electrical connections. Typically used in electrical and electronic applications, it ensures reliable performance in various circuits.
AWG max. 8
Contact material Cathode copper, tin plated
Cross section 10
Cross-section range 10 mm² (max)
Dim ØD1 x L x S 4.5 x 9 x 1.1 mm
Dimensions ØD1 x L x S 4.5 x 9 x 1.1 mm
Factory colour Metal
Inside diameter 4.5mm
Insulation type Not insulated
Length 9mm
Material (details) E-Cu Sn
max. cross section 10mm²
RoHS-compliant Yes
Temperature range To +125°C
Type Parallel connector
Wall thickness (details) 1.1mm
