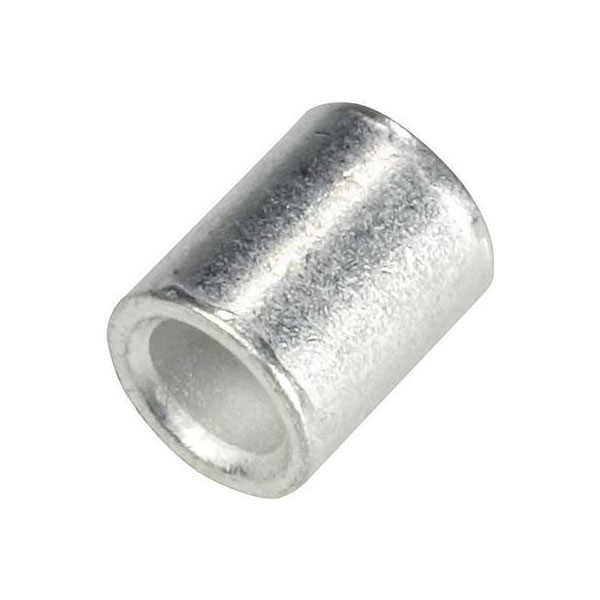

Vogt 3701K Parallel Connector 1.50-2.50mm² Non-Insulated Tin-Plated

Image Representative of Range

Vogt 3701K Parallel Connector 1.50-2.50mm² Non-Insulated Tin-Plated

Standard range
Order Code:

13-3807

Brand: Vogt Verbindungstechnik MPN: 3701K EAN-13: 2050000409882
Qty Unit Price (Ex VAT)
50+ £0.099
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
1,558 in stock, despatched in 4 working days

Vogt Verbindungstechnik manufactures the 3701K parallel connector designed for wire sizes of 1.50 mm² to 2.50 mm². This metal connector is not insulated, providing a reliable connection for wiring applications. It is typically used in electrical installations where a durable and efficient crimp connection is required.
AWG (min.) 16
AWG max. 14
Contact material Cathode copper, tin plated
Cross section 1.5 - 2.0mm²
Cross-section range 1.50 - 2.50 mm²
Dim ØD1 x L x S 2.3 x 5 x 0.8 mm
Dimensions ØD1 x L x S 2.3 x 5 x 0.8 mm
Factory colour Metal
Inside diameter 2.3mm
Insulation type Not insulated
Length 5mm
Material (details) E-Cu Sn
max. cross section 2.50mm²
Min. cross section 1.50mm²
RoHS-compliant Yes
Temperature range To +125°C
Type Parallel connector
Wall thickness (details) 0.8mm
