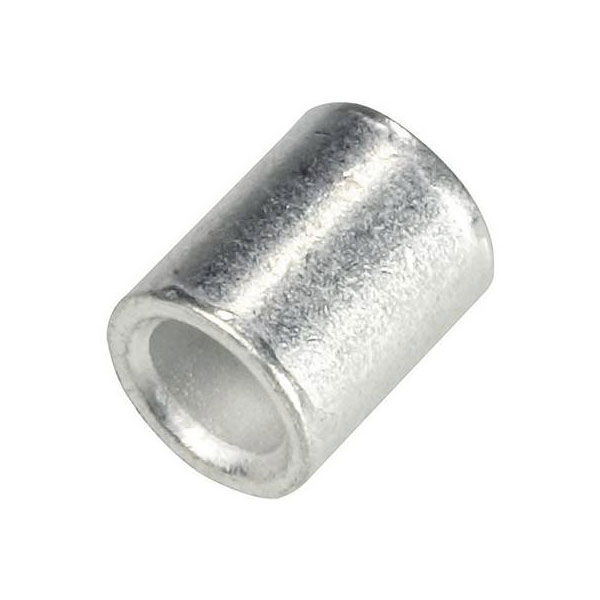

Vogt 3700K Parallel Connector 0.50-1mm² Tin-Plated Electrolyte Copper

Image Representative of Range

Vogt 3700K Parallel Connector 0.50-1mm² Tin-Plated Electrolyte Copper

Vogt Verbindungstechnik
Standard range
Order Code:

13-3805

Brand: Vogt Verbindungstechnik MPN: 3700K EAN-13: 2050000409868
Qty Unit Price (Ex VAT)
1+ £0.080
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
810 in stock, despatched in 4 working days

The Vogt Verbindungstechnik 3700K is a parallel connector designed for use with wire sizes between 0.50 mm² and 1 mm². It is a not insulated metal component typically used in electrical and electronic applications where secure and robust crimp connections are required. This connector is ideal for ensuring reliable connections in various devices and electrical installations.
AWG (min.) 22
AWG max. 18
Contact material Cathode copper, tin plated
Cross section 5 - 1mm²
Cross-section range 0.50 - 1 mm²
Dim ØD1 x L x S 1.6 x 5 x 0.8 mm
Dimensions ØD1 x L x S 1.6 x 5 x 0.8 mm
Factory colour Metal
Inside diameter 1.6mm
Insulation type Not insulated
Length 5mm
Material (details) E-Cu Sn
max. cross section 1mm²
Min. cross section 0.50mm²
RoHS-compliant Yes
Temperature range To +125°C
Type Parallel connector
Wall thickness (details) 0.8mm
