Vogt 3700 Parallel Connector 0.50-1mm² Non-Insulated Metal 1 piece

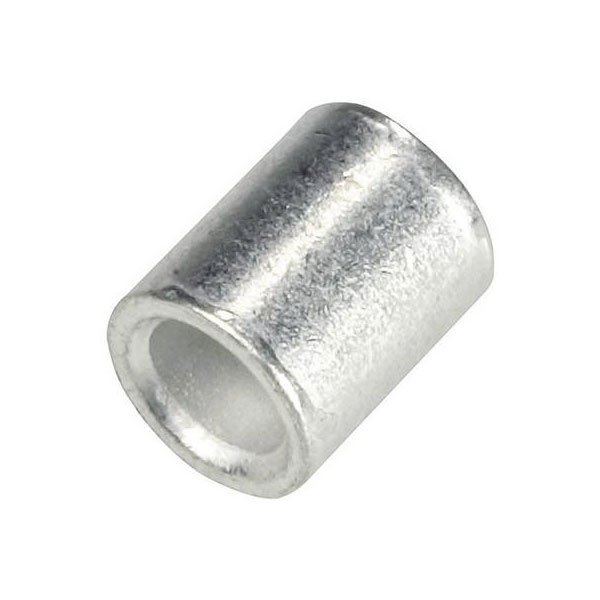

Image Representative of Range

Vogt 3700 Parallel Connector 0.50-1mm² Non-Insulated Metal 1 piece

Vogt Verbindungstechnik
Extended range
Order Code:

13-3804

Brand: Vogt Verbindungstechnik MPN: 3700 EAN-13: 2050000409851
Qty Unit Price (Ex VAT)
50+ £0.119
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
Available to back orderBack order, lead time 4 weeks

Vogt Verbindungstechnik 3700 parallel connector is a metal, non-insulated crimp connector suitable for wire sizes ranging from 0.50 mm² to 1 mm². Its compact dimensions (1.6x7x0.8mm) make it ideal for use in tight spaces where efficient electrical connections are required. This connector is commonly used in electrical installations and repairs, ensuring reliable and secure connections.
AWG (min.) 22
AWG max. 18
Contact material Cathode copper, tin plated
Cross section 0.5 - 1mm²
Cross-section range 0.50 - 1 mm²
Dim ØD1 x L x S 1.6 x 7 x 0.8 mm
Dimensions ØD1 x L x S 1.6 x 7 x 0.8 mm
Factory colour Metal
Inside diameter 1.6mm
Insulation type Not insulated
Length 7mm
Material (details) E-Cu Sn
max. cross section 1mm²
Min. cross section 0.50mm²
RoHS-compliant Yes
Temperature range To +125°C
Type Parallel connector
Wall thickness (details) 0.8mm
