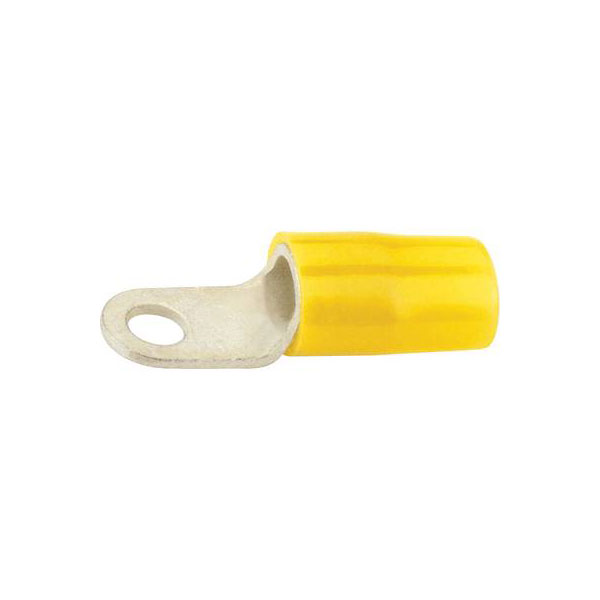

Vogt 3683A Ring Terminal 25mm² 6mm Hole Partially Insulated Yellow

Image Representative of Range

Vogt 3683A Ring Terminal 25mm² 6mm Hole Partially Insulated Yellow

Vogt Verbindungstechnik
Standard range
Order Code:

13-3802

Brand: Vogt Verbindungstechnik MPN: 3683A EAN-13: 2050000238024
Qty Unit Price (Ex VAT)
1+ £0.652
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
152 in stock, despatched in 4 working days

Vogt Verbindungstechnik produces the 3683A ring terminal, which is partially insulated and yellow, suitable for a maximum cross-section of 25 mm² with a hole diameter of 6 mm. This crimp connector is often utilised in automotive and electrical systems for secure connections without the need for soldering. The product is ideal for ensuring reliable and durable connections in various applications, such as automotive wiring.
Contact material Cathode copper, tin plated
Cross section 16 - 25mm²
Cross-section range 16 - 25 mm²
Dimensions (D3 x L x R) (12 x 38 x 7.5)mm
Factory colour Yellow
Hole Ø 6mm
Insulation material Polyamide
Insulation type Partially insulated
Material (details) Tinned electrolytic copper (DIN 46237 / UL-No. E235797)
max. cross section 25mm²
Min. cross section 16mm²
RoHS-compliant Yes
Support sleeve No
Thread Size M6
Type Ring terminal
