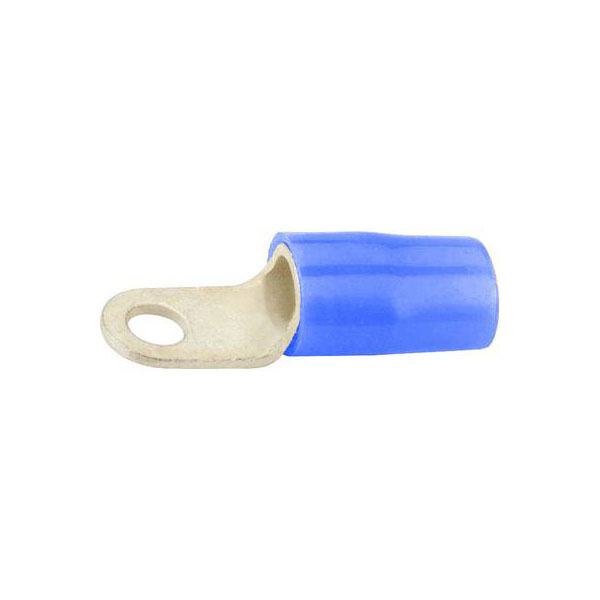

Vogt 3677A Ring Terminal 15mm² 6mm Hole Partially Insulated Blue

Image Representative of Range

Vogt 3677A Ring Terminal 15mm² 6mm Hole Partially Insulated Blue

Vogt Verbindungstechnik
Standard range
Order Code:

13-3801

Brand: Vogt Verbindungstechnik MPN: 3677A EAN-13: 2050000238017
Qty Unit Price (Ex VAT)
1+ £0.751
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
41 in stock, despatched in 4 working days

The Vogt Verbindungstechnik 3677A ring terminal is a partially insulated blue connector with a maximum cross-section of 15 mm² and a 6 mm hole diameter. Designed for crimp connections, it provides a reliable, solder-free option for wiring needs. Typically used in automotive and electronic applications, it ensures secure fastening in electrical assemblies.
Contact material Cathode copper, tin plated
Cross section 10 - 15mm²
Cross-section range 10 - 15 mm²
Dimensions (D3 x L x R) (11 x 32.5 x 7.50)mm
Factory colour Blue
Hole Ø 6mm
Insulation material Polyamide
Insulation type Partially insulated
Material (details) Tinned electrolytic copper (DIN 46237 / UL-No. E235797)
max. cross section 15mm²
Min. cross section 10mm²
RoHS-compliant Yes
Support sleeve No
Thread Size M6
Type Ring terminal
