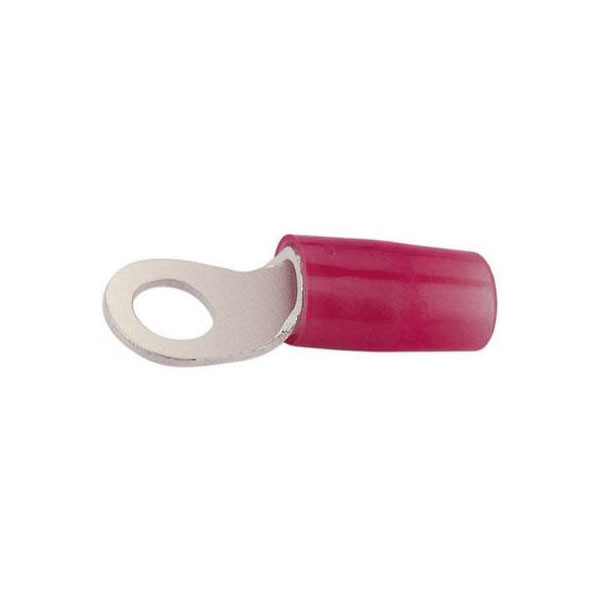

Vogt 3671A Ring Terminal 10mm² Dia6.5mm Partially Insulated Red

Image Representative of Range

Vogt 3671A Ring Terminal 10mm² Dia6.5mm Partially Insulated Red

Standard range
Order Code:

13-3800

Brand: Vogt Verbindungstechnik MPN: 3671A EAN-13: 2050000237997
Qty Unit Price (Ex VAT)
20+ £0.376
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
1,641 in stock, despatched in 4 working days

The Vogt Verbindungstechnik 3671A ring terminal features a maximum cross-section of 10 mm² and a 6.5 mm hole diameter, designed for reliable connectivity. It is partially insulated and red, ideal for secure, solder-free automotive and electronic applications. This component is particularly suited for use in crimp connectors and ring terminal assemblies.
Contact material Cathode copper, tin plated
Cross section 6 - 10mm²
Cross-section range 6 - 10 mm²
Factory colour Red
Hole Ø 6.5mm
Insulation material Polyamide
Insulation type Partially insulated
Material (details) Tinned electrolytic copper (DIN 46237 / UL-No. E235797)
max. cross section 10mm²
Min. cross section 6mm²
RoHS-compliant Yes
Support sleeve No
Thread Size M6
Type Ring terminal
