Vogt 3630A Ring Terminal 2.5mm² 4.3mm Hole Partially Insulated Blue

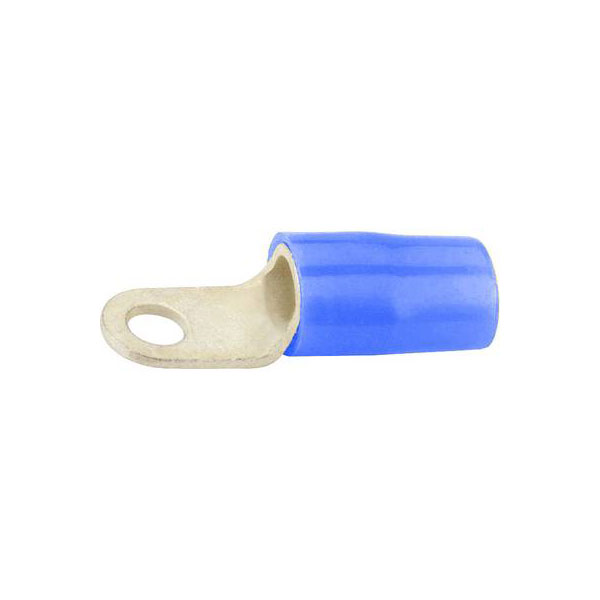

Image Representative of Range

Vogt 3630A Ring Terminal 2.5mm² 4.3mm Hole Partially Insulated Blue

Vogt Verbindungstechnik
Extended range
Order Code:

13-3759

Brand: Vogt Verbindungstechnik MPN: 3630A EAN-13: 2050000243615
Qty Unit Price (Ex VAT)
1+ £0.099
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack order, lead time 3 weeks

The Vogt Verbindungstechnik ring terminal model 3630A features a partially insulated design in blue, accommodating a cross-section up to 2.50 mm² with a hole diameter of 4.3 mm. Typically used in automotive and electrical applications, it serves as a crimp connector for secure wire connections without soldering. This component is ideal for ensuring reliable connectivity in various crimping tasks.
Contact material Cathode copper, tin plated
Cross section 1.5 - 2.5mm²
Cross-section range 1.50 - 2.50 mm²
Factory colour Blue
Hole Ø 4.3mm
Insulation material PVC
Insulation type Partially insulated
Material (details) Tinned electrolytic copper (DIN 46237 / UL-No. E235797)
max. cross section 2.50mm²
Min. cross section 1.50mm²
RoHS-compliant Yes
Support sleeve No
Thread Size M4
Type Ring terminal
