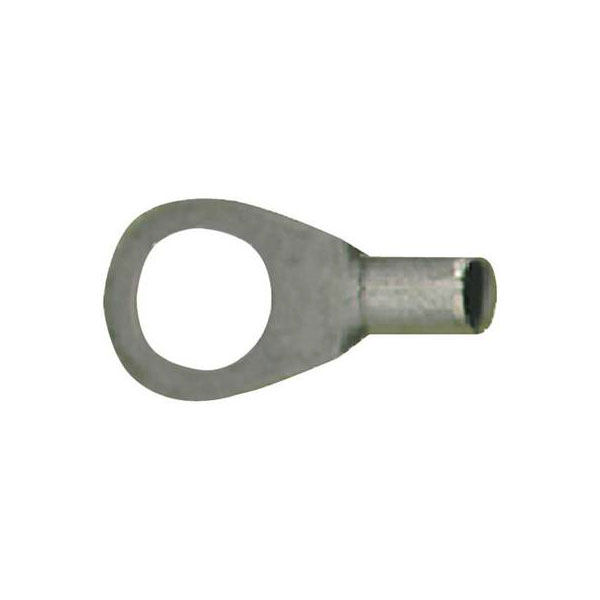

Vogt 3562A Ring Terminal Max 16mm² Hole Dia6.5mm Non-Insulated Metal

Image Representative of Range

Vogt 3562A Ring Terminal Max 16mm² Hole Dia6.5mm Non-Insulated Metal

Vogt Verbindungstechnik
Standard range
Order Code:

13-3725

Brand: Vogt Verbindungstechnik MPN: 3562A EAN-13: 2050000236518
Qty Unit Price (Ex VAT)
20+ £0.336
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
726 in stock, despatched in 4 working days

The Vogt Verbindungstechnik 3562A ring terminal is made of tinned electrolytic copper and supports a maximum cross-section of 16 mm² with a 6.5 mm hole diameter. It is not insulated and is typically used in automotive or electrical applications for secure connections without soldering. This crimp connector is ideal for use in various components and connectors, particularly in environments that require durable and reliable ring terminals.
Contact material Cathode copper, tin plated
Cross section 16mm²
Cross-section range 16 mm² (max)
Factory colour Metal
Hole Ø 6.5mm
Insulation type Not insulated
Material (details) Tinned electrolytic copper (DIN 46234 / UL-No. E235797)
max. cross section 16mm²
RoHS-compliant Yes
Support sleeve No
Thread Size M6
Type Ring terminal
