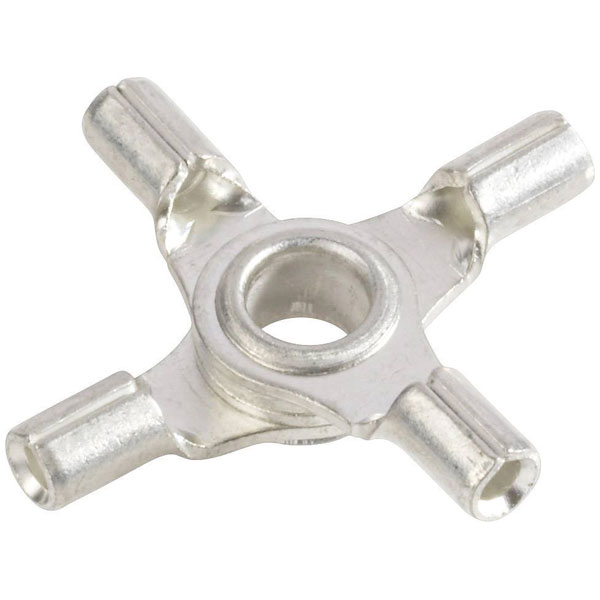

Vogt 3520a3 Crimp Contact 2.50mm² Max Cross Section 4mm Hole Metal

Image Representative of Range

Vogt 3520a3 Crimp Contact 2.50mm² Max Cross Section 4mm Hole Metal

Vogt Verbindungstechnik
Standard range
Order Code:

13-3711

Brand: Vogt Verbindungstechnik MPN: 3520a3 EAN-13: 2050000706066
Qty Unit Price (Ex VAT)
1+ £0.317
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
72 in stock, despatched in 4 working days

Vogt Verbindungstechnik manufactures the 3520a3 crimp contact distributor, designed for a maximum cross-section of 2.50 mm² with a hole diameter of 4 mm. The non-insulated metal ring terminal, suitable for automotive applications, is part of their range of crimp connectors. This versatile component is ideal for ensuring secure electrical connections in various automotive and electronic projects.
AWG (min.) 16
AWG max. 14
Contact material Cathode copper, tin plated
Cross section 1.5 - 2.0mm²
Cross-section range 1.50 - 2.50 mm²
Factory colour Metal
Hole Ø 4mm
Insulation type Not insulated
Material (details) Tinned electrolytic copper
max. cross section 2.50mm²
Min. cross section 1.50mm²
Misc Attribute 2 3-way
RoHS-compliant Yes
Size M4
Support sleeve No
Temperature range upto+125°C
Thread Size M4
Type Crimp contact distributor
