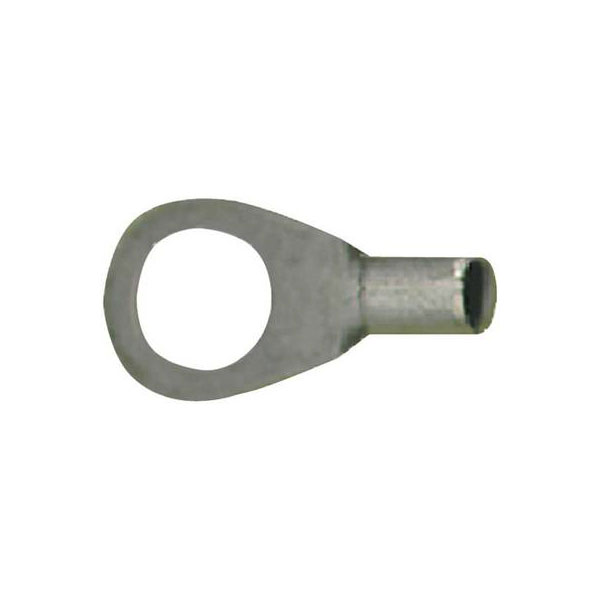

Vogt 3519A Ring Terminal 2.50mm² 4.3mm Hole Not Insulated Metal 1 piece

Image Representative of Range

Vogt 3519A Ring Terminal 2.50mm² 4.3mm Hole Not Insulated Metal 1 piece

Vogt Verbindungstechnik
Order Code:

13-3709

Brand: Vogt Verbindungstechnik MPN: 3519A EAN-13: 2050000236280
Qty Unit Price (Ex VAT)
50+ £0.099
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
3,854 in stock, despatched in 4 working days

The Vogt Verbindungstechnik 3519A ring terminal is a metal crimp connector with a maximum cross-section of 2.50 mm² and a hole diameter of 4.3 mm. Made from tinned electrolytic copper, it is solder-free and designed for robust electrical connections. Typically used in automotive and electrical applications, it provides secure connections for cables in various settings.
Colour Metal
Insulated Not insulated
Stud Size 4.3mm
Maximum Wire Size (mm2) 2.50mm²
Contact Material Cathode copper, tin plated
Cross Section 1.5 - 2.5mm²
Cross-section range 1.50 - 2.50 mm²
Hole Ø 4.3mm
Material (details) Tinned electrolytic copper (DIN 46234 / UL-No. E235797)
max. cross section 2.50mm²
Maximimum Wire Gauge (AWG) 14
Min. cross section 1.50mm²
Product Type Ring Terminal
Support sleeve No
Thread Size M4
