Vogt 3515A Ring Terminal Max 2.50mm² Hole Dia3.2mm Not Insulated Metal

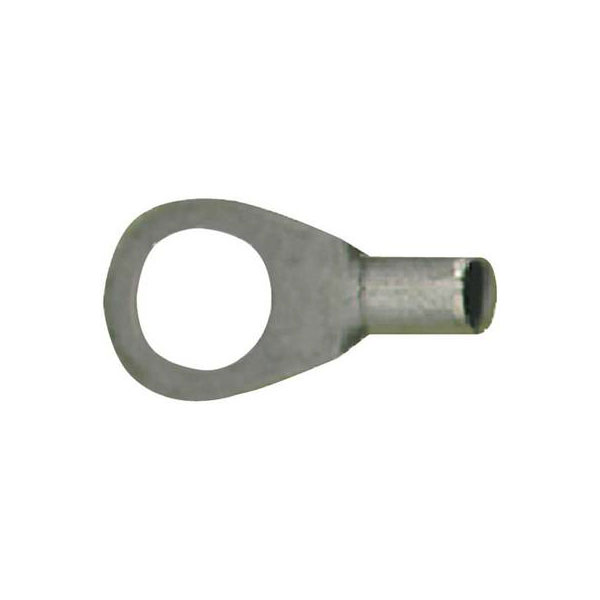

Image Representative of Range

Vogt 3515A Ring Terminal Max 2.50mm² Hole Dia3.2mm Not Insulated Metal

Vogt Verbindungstechnik
Standard range
Order Code:

13-3707

Brand: Vogt Verbindungstechnik MPN: 3515A EAN-13: 2050000236273
Qty Unit Price (Ex VAT)
50+ £0.080
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
2,454 in stock, despatched in 4 working days

The Vogt Verbindungstechnik 3515A ring terminal is made of tinned electrolytic copper, suitable for cross sections up to 2.50 mm² with a hole diameter of 3.2 mm. It is a non-insulated, solderless crimp connector designed for electrical connections. This ring terminal is commonly used in automotive and general electrical applications.
Contact material Cathode copper, tin plated
Cross section 1.5 - 2.5mm²
Cross-section range 1.50 - 2.50 mm²
Factory colour Metal
Hole Ø 3.2mm
Insulation type Not insulated
Material (details) Tinned electrolytic copper (DIN 46234 / UL-No. E235797)
max. cross section 2.50mm²
Min. cross section 1.50mm²
RoHS-compliant Yes
Support sleeve No
Thread Size M3
Type Ring terminal
