Vogt 3436A Crimp Cable Lug M6 50mm² 180° E-Cu Sn Hole Dia6.5mm

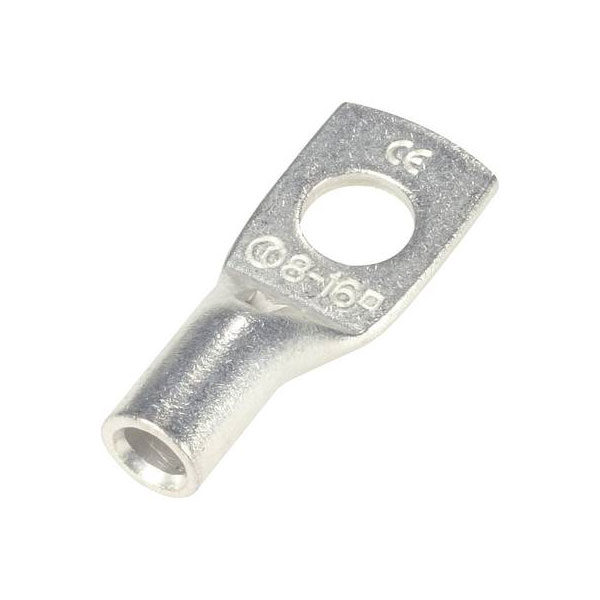

Image Representative of Range

Vogt 3436A Crimp Cable Lug M6 50mm² 180° E-Cu Sn Hole Dia6.5mm

Vogt Verbindungstechnik
Standard range
Order Code:

13-3696

Brand: Vogt Verbindungstechnik MPN: 3436A EAN-13: 2050000409745
Qty Unit Price (Ex VAT)
1+ £2.18
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
22 in stock, despatched in 4 working days

Vogt Verbindungstechnik manufactures the 3436A crimp cable lug, designed for cables up to 50 mm² with an M6 connection and a 6.5 mm hole diameter. This cable lug features a 180° blade type terminal, commonly used in automotive and industrial electrical applications. It is specifically useful for ensuring secure wire connections in electrical circuits.
AWG max. 1
Connection angle 180°
Contact material CuSn
Cross section 50mm²
Dim Ø D x Ø D1 x B x L x A x Ø D4 6.5 x 10 x 20 x 37 x 19 x 14 mm
Dimensions Ø D x Ø D1 x B x L x A x Ø D4 6.5 x 10 x 20 x 37 x 19 x 14 mm
Hole Ø 6.5mm
Material (details) E-Cu sn
max. cross section 50mm²
RoHS-compliant Yes
Thread Size M6
Type Crimp cable lug
