Vogt 3429A Crimp Cable Lug 180° M12 25mm² Hole Dia13mm E-Cu Sn

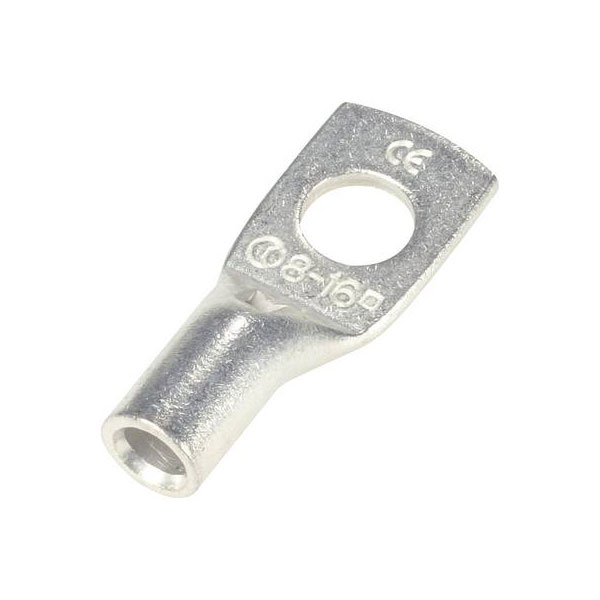

Image Representative of Range

Vogt 3429A Crimp Cable Lug 180° M12 25mm² Hole Dia13mm E-Cu Sn

Vogt Verbindungstechnik
Standard range
Order Code:

13-3695

Brand: Vogt Verbindungstechnik MPN: 3429A EAN-13: 2050000409684
Qty Unit Price (Ex VAT)
1+ £1.17
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
22 in stock, despatched in 4 working days

Vogt Verbindungstechnik produces the 3429A crimp cable lug, featuring a 180° design, suitable for an M12 bolt with a hole diameter of 13 mm and a capacity for 25 mm² cables. This component is commonly used in electrical connections requiring secure and reliable termination. It is typically applied in industrial and automotive settings for efficient power distribution.
AWG max. 4
Connection angle 180°
Contact material CuSn
Cross section 25mm²
Dim Ø D x Ø D1 x B x L x A x Ø D4 13 7 19 35 15 10
Dimensions Ø D x Ø D1 x B x L x A x Ø D4 13 7 19 35 15 10
Hole Ø 13mm
Material (details) E-Cu sn
max. cross section 25mm²
RoHS-compliant Yes
Thread Size M12
Type Crimp cable lug
