Vogt 3412A Crimp Cable Lug 180° M10 6mm² Hole Dia10.5mm E-Cu Sn

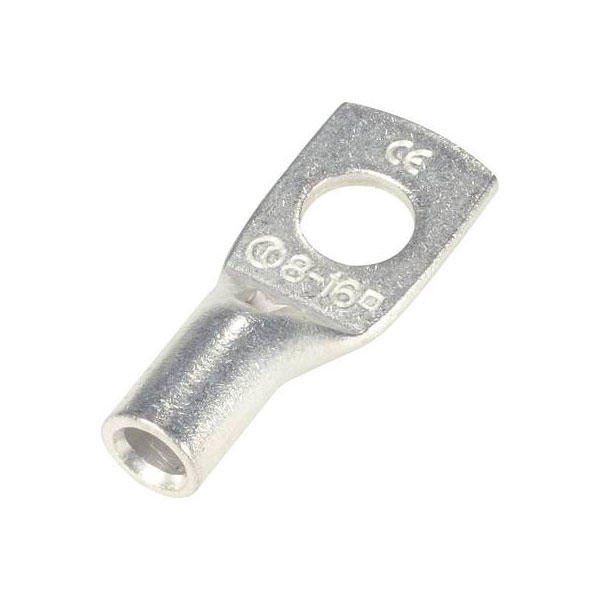

Image Representative of Range

Vogt 3412A Crimp Cable Lug 180° M10 6mm² Hole Dia10.5mm E-Cu Sn

Vogt Verbindungstechnik
Standard range
Order Code:

13-3686

Brand: Vogt Verbindungstechnik MPN: 3412A EAN-13: 2050000409523
Qty Unit Price (Ex VAT)
1+ £1.39
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
57 in stock, despatched in 4 working days

Vogt Verbindungstechnik's crimp cable lug 3412A is designed for M10 connections and accommodates 6 mm² cables. It features a 180-degree spade configuration with a 10.5 mm hole diameter. This crimp connector is ideal for electrical applications requiring secure and reliable connections.
AWG max. 10
Connection angle 180°
Contact material CuSn
Cross section 6mm²
Dim Ø D x Ø D1 x B x L x A x Ø D4 10.5 x 3.5 x 17 x 21 x 9 x 6.5
Dimensions Ø D x Ø D1 x B x L x A x Ø D4 10.5 x 3.5 x 17 x 21 x 9 x 6.5
Hole Ø 10.5mm
Material (details) E-Cu sn
max. cross section 6mm²
RoHS-compliant Yes
Thread Size M10
Type Crimp cable lug
