Vogt 3411A Crimp Cable Lug 180° M8 6mm² Hole Dia 8.5mm E-Cu Sn

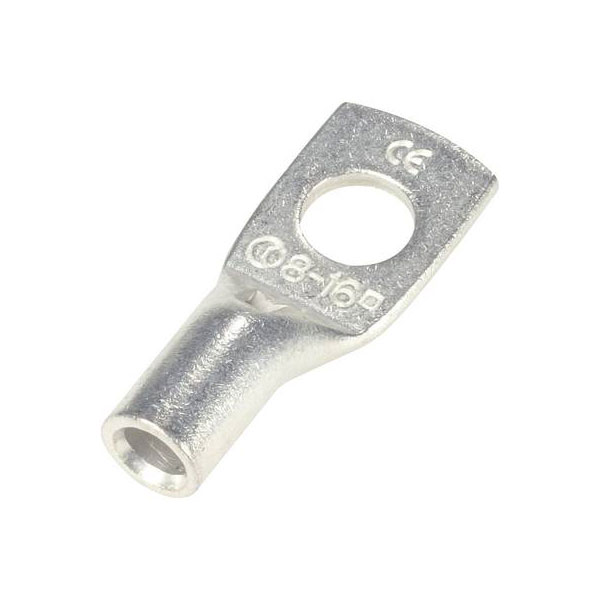

Image Representative of Range

Vogt 3411A Crimp Cable Lug 180° M8 6mm² Hole Dia 8.5mm E-Cu Sn

Vogt Verbindungstechnik
Standard range
Order Code:

13-3685

Brand: Vogt Verbindungstechnik MPN: 3411A EAN-13: 2050000415869
Qty Unit Price (Ex VAT)
1+ £0.672
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
256 in stock, despatched in 4 working days

The Vogt Verbindungstechnik 3411A is a crimp cable lug designed for M8 connections and suitable for 6 mm² cables with a hole diameter of 8.5 mm. This component is ideal for secure electrical connections in various wiring applications. It is often used in industrial and automotive settings due to its reliable crimp connection and durable construction.
AWG max. 10
Connection angle 180°
Contact material CuSn
Cross section 6mm²
Dim Ø D x Ø D1 x B x L x A x Ø D4 8.4 x 3.5 x 14 x 21 x 9 x 5.5 mm
Dimensions Ø D x Ø D1 x B x L x A x Ø D4 8.4 x 3.5 x 14 x 21 x 9 x 5.5 mm
Hole Ø 8.5mm
Material (details) E-Cu sn
max. cross section 6mm²
RoHS-compliant Yes
Thread Size M8
Type Crimp cable lug
