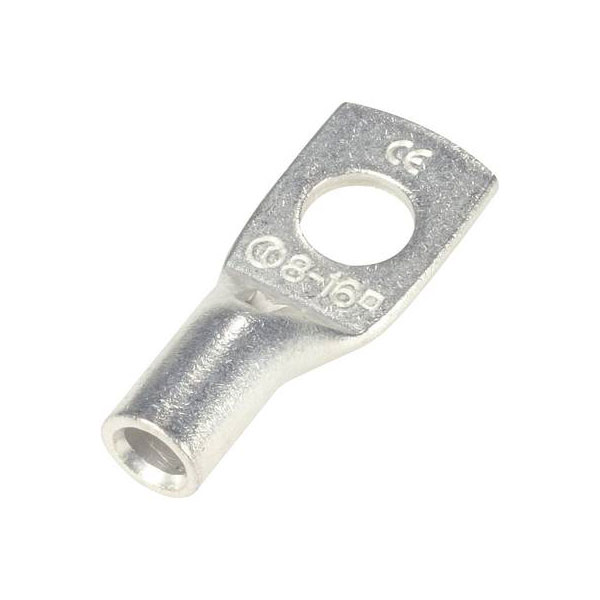

Vogt 3410A Crimp Cable Lug 180° M6 6mm² Hole Dia 6.5mm E-Cu Sn

Image Representative of Range

Vogt 3410A Crimp Cable Lug 180° M6 6mm² Hole Dia 6.5mm E-Cu Sn

Vogt Verbindungstechnik
Standard range
Order Code:

13-3684

Brand: Vogt Verbindungstechnik MPN: 3410A EAN-13: 2050000409516
Qty Unit Price (Ex VAT)
1+ £0.731
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
124 in stock, despatched in 4 working days

The Vogt Verbindungstechnik crimp cable lug 3410A is designed for 6 mm² cables and features an M6 screw connection. It includes a hole with a diameter of 6.5 mm and is suitable for secure electrical connections. This component is typically used in electrical installations and equipment requiring reliable wire termination.
AWG max. 10
Connection angle 180°
Contact material CuSn
Cross section 6mm²
Dim Ø D x Ø D1 x B x L x A x Ø D4 6.5 x 3.5 x 12 x 21 x 9 x 6.5
Dimensions Ø D x Ø D1 x B x L x A x Ø D4 6.5 x 3.5 x 12 x 21 x 9 x 6.5
Hole Ø 6.5mm
Material (details) E-Cu sn
max. cross section 6mm²
RoHS-compliant Yes
Thread Size M6
Type Crimp cable lug
