Vogt 3403A Crimp Cable Lug 180° M5 2.50mm² Hole Dia 5.3mm E-Cu Sn

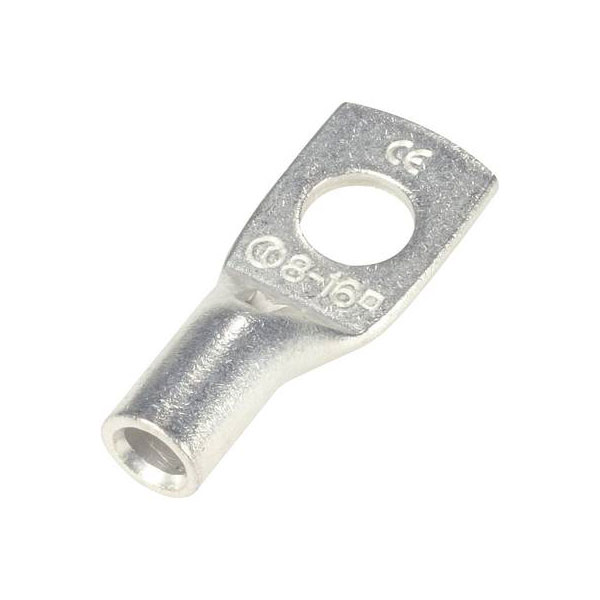

Image Representative of Range

Vogt 3403A Crimp Cable Lug 180° M5 2.50mm² Hole Dia 5.3mm E-Cu Sn

Vogt Verbindungstechnik
Standard range
Order Code:

13-3682

Brand: Vogt Verbindungstechnik MPN: 3403A EAN-13: 2050000409486
Qty Unit Price (Ex VAT)
10+ £0.554
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
83 in stock, despatched in 4 working days

The Vogt Verbindungstechnik crimp cable lug 3403A is designed for use with M5 screws and accommodates cables up to 2.50 mm², featuring a 5.3 mm hole diameter. It is made from copper and tin-plated for enhanced conductivity and corrosion resistance. This component is typically used in electrical and electronic connections for providing secure and reliable connectivity.
AWG max. 14
Connection angle 180°
Contact material CuSn
Cross section 2.5mm²
Dim Ø D x Ø D1 x B x L x A x Ø D4 5.3 x 2.3 x 8.5 x 14 x 6 x 4.2
Dimensions Ø D x Ø D1 x B x L x A x Ø D4 5.3 x 2.3 x 8.5 x 14 x 6 x 4.2
Hole Ø 5.3mm
Material (details) E-Cu sn
max. cross section 2.50mm²
RoHS-compliant Yes
Thread Size M5
Type Crimp cable lug
