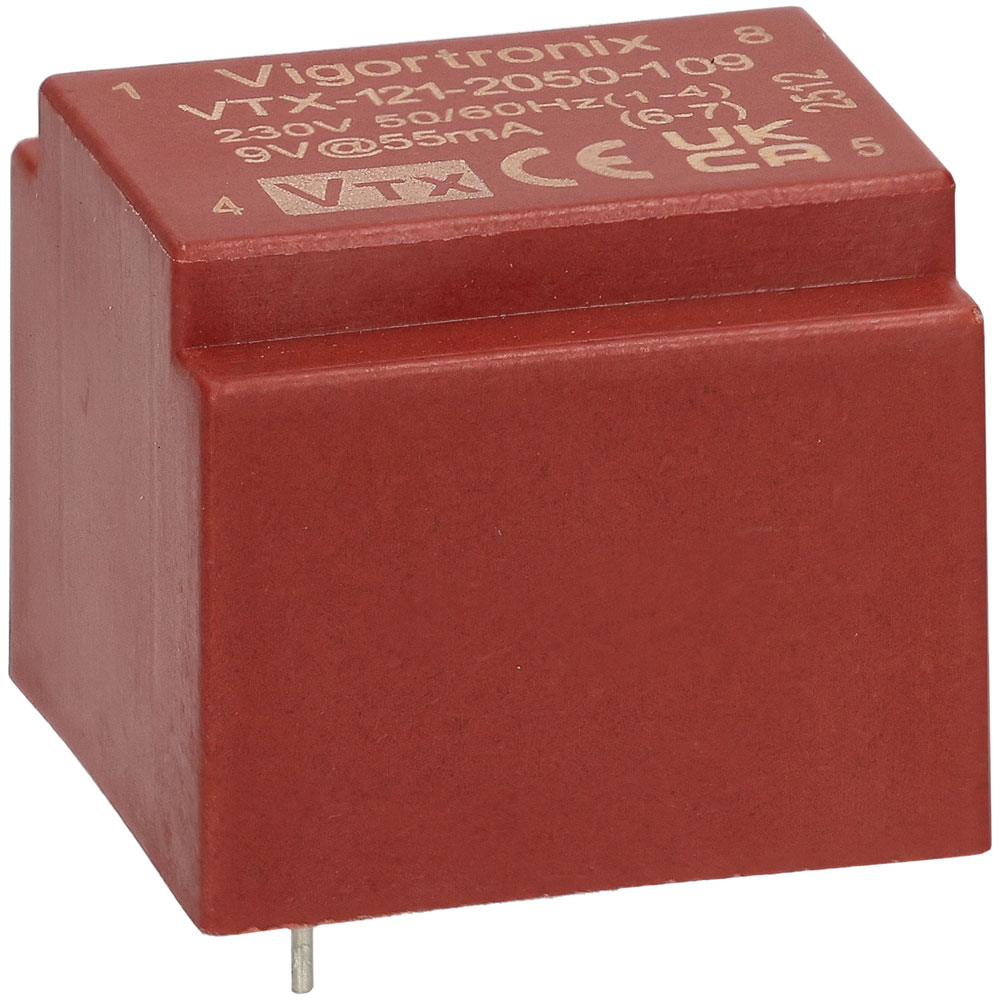

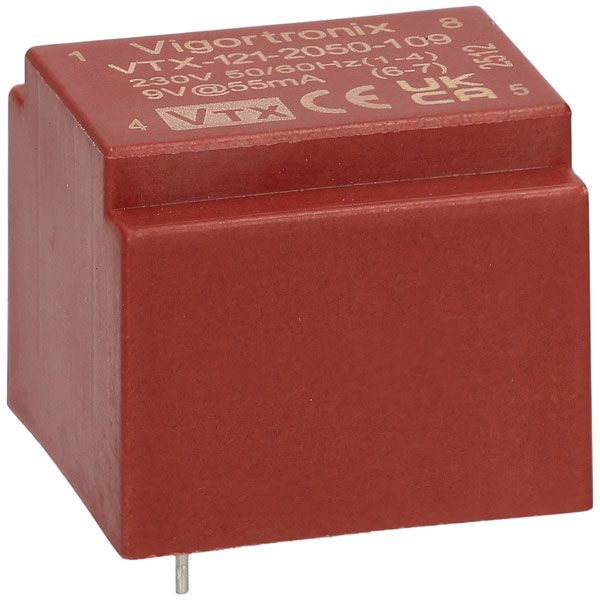

Vigortronix VTX-121-2050-109 Encapsulated PCB Transformer – EE20 0.5VA

Vigortronix VTX-121-2050-109 Encapsulated PCB Transformer – EE20 0.5VA - VTX-121-20xx Series are high performance EE20 encapsulated transformers with PCB mounting.

Due to their construction and encapsulation these transformers provide excellent performance in aggressive environments where potential exists for changes in temperature and humidity. Power ratings for this range include 0.35 and 0.5 VA versions.

• High Quality Encapsulated Transformer
• Single Primary/Secondary windings
• Power: 0.5VA 50/60Hz
• Temperature Class: – Class B (130OC)
• Ambient temperature: +70°C
• Dielectric Strength Pri~Sec: 4.2KVrms
• Dielectric Strength Sec ~ Sec: >1.0KVrms
• Manufactured and tested in accordance to UL506, EN61558, EN60950, CE
