TT Electronics SW4464-C2 12V DC 1.25A PSU UK EU US AU Pins 2.1mm Connector

TT Electronics
MPN
SW4464-C2
Order Code
85-2992
Country of Origin
Cambodia

Discontinued

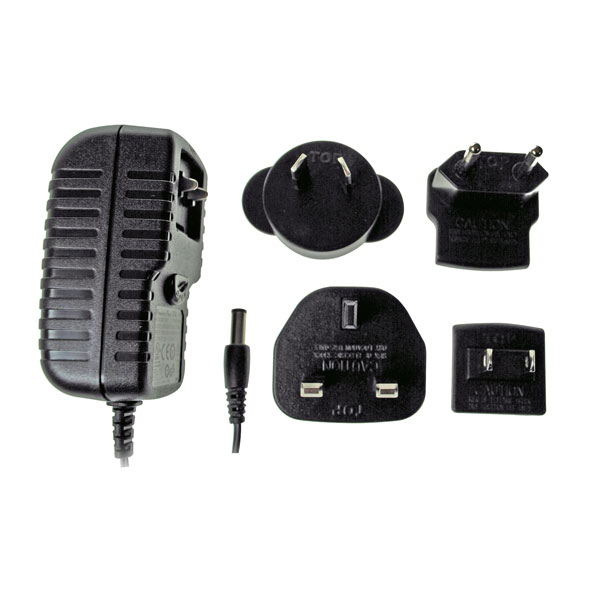

A 12V 1.25A 15W power supply that has a 90-264V AC input and comes supplied complete with UK, European, USA and Australian pins as standard. It carries full international safety approvals making it suitable for world use. This PSU unit meets the latest ErP stage 2 requirements and has a high reliability with M.T.B.F of 50K hours at 25°C. The PSU provides a single voltage regulated output and is fitted with a 2.1 x 5.5 x 12mm connector. Polarity + ve centre.


  • Rating: 12V 1.25A 15W
  • Rated Input: Voltage 100 to 240V AC
  • Full Input: Voltage Range 90 to 264V AC
  • Efficiency Level VI
Output Current 1.25A
AC Input Plug Nationality AUS, Euro, UK, USA
Dimensions (L x W x H) 80 x 42 x 40mm
Output Connector 2.1 x 5.5 x 12mm female barrel
Output Voltage (DC) 12V
Polarity Centre positive
Power Rating 15W
Rating 12V 1.25A 15W
Supply Voltage Range 90 to 264V
