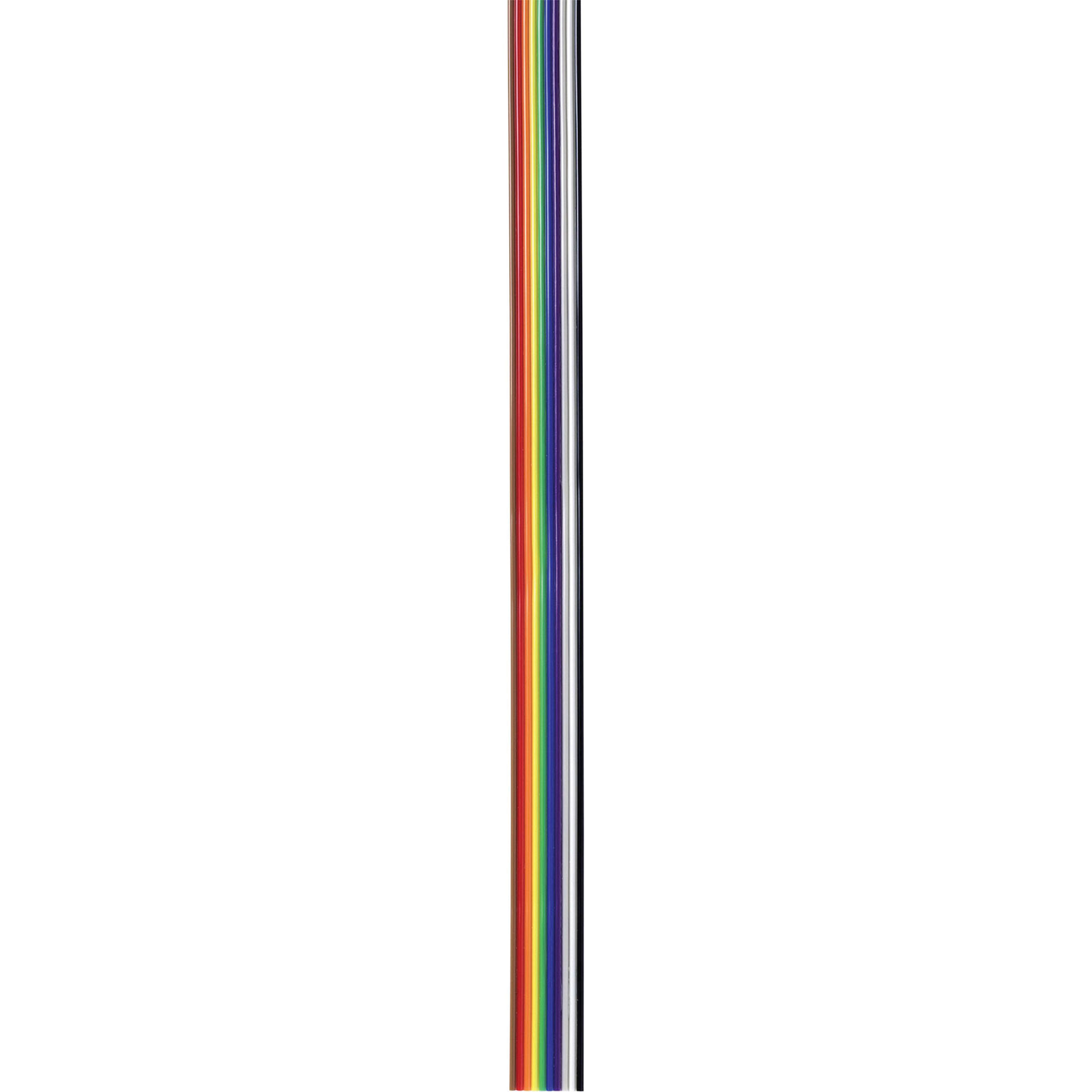

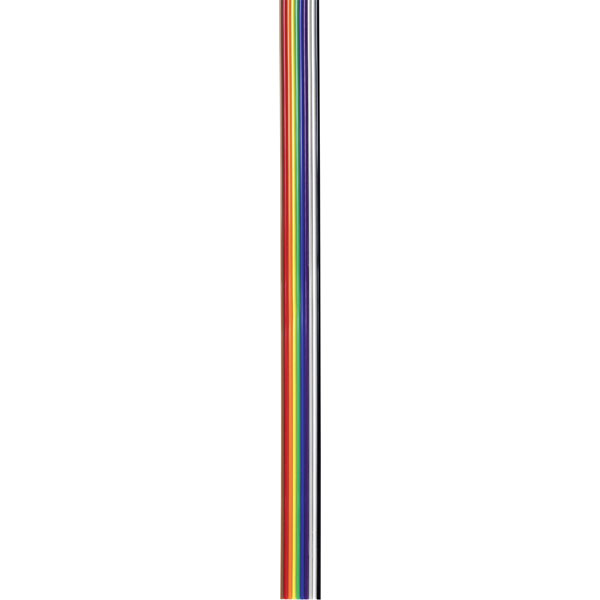

TruComponents TC-7638572 Data Cable 20-Pin 10m 1.27mm Pitch Multicolour

Image Representative of Range

TruComponents TC-7638572 Data Cable 20-Pin 10m 1.27mm Pitch Multicolour

TruComponents
Standard range
Order Code:

13-3343

Brand: TruComponents MPN: TC-7638572 EAN-13: 4053199924196
Qty Unit Price (Ex VAT)
10+ £17.28
50+ £16.84
100+ £16.41
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
64 in stock, despatched in 4 working days

TruComponents manufactures the TC-7638572 data cable, which features 20 pins with a 1.27 mm pitch and contact spacing. This multicolour cable is 10 metres long and has a cross-section of 20 x 0.125 mm², making it suitable for data transmission in various electronic applications. It is commonly used in computing and telecommunications for connecting internal components.
Type Data cable
AWG 26
Cable features ribbon
Core layout 7 x 0.16mm
Cross section 20 x 0.125 mm²
Cross section (each core) 0.125mm²
CS 1.27mm
Factory colour Multicolour
Manufacturer part # TC-7638572
Max. temperature range (fixed installation) +70°C
Min. temperature range (fixed installation) -20°C
Misc Attribute TC-7638572
No. of leads 20
