TRUCOMPONENTS Rocker Switch Round SPST,Illuminated Quick Connect IP66

TruComponents Brand: TruComponents

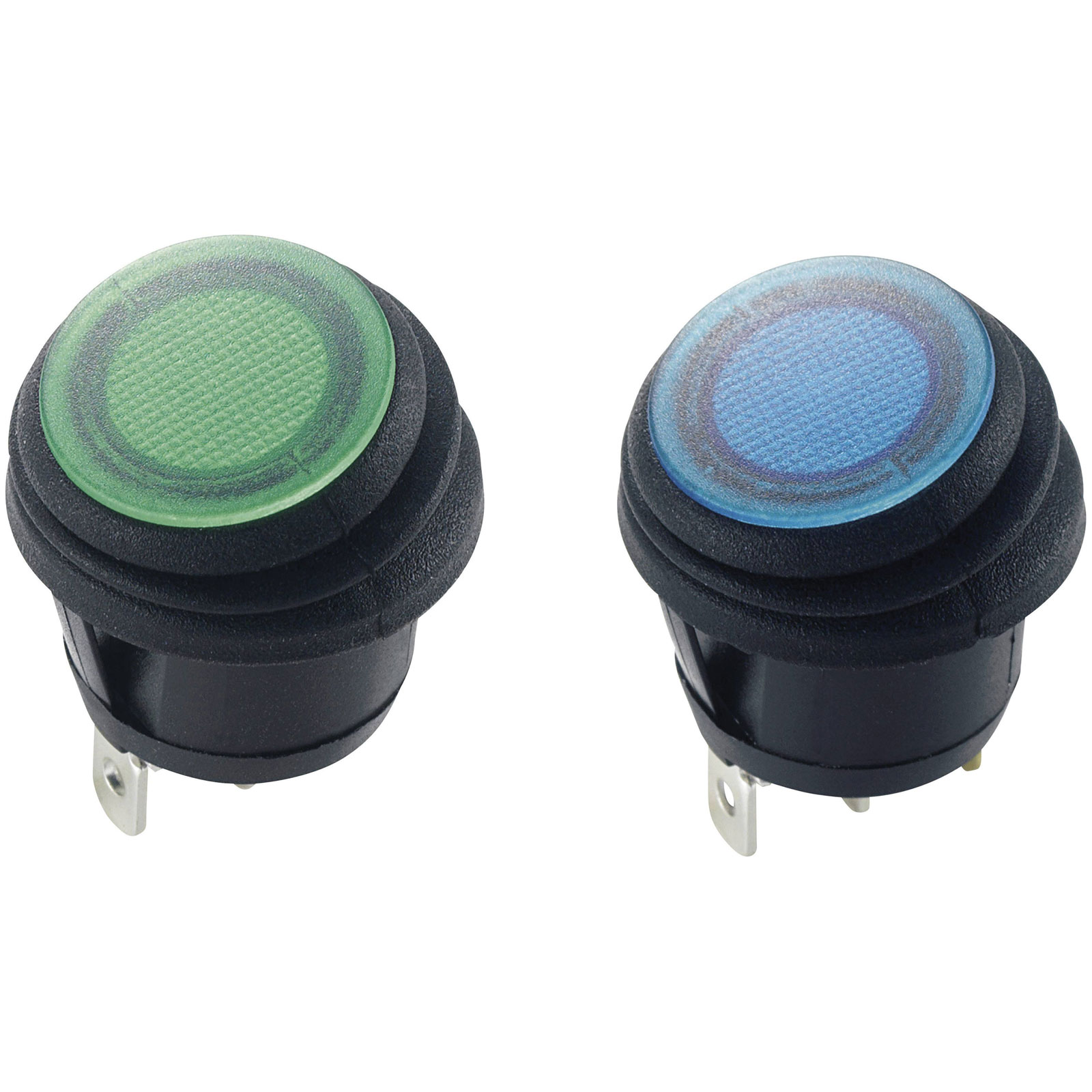

The TRUCOMPONENTS 751597 and 751598 Rocker Switches are premium, panel-mount switches designed for applications requiring reliable Off/On control with visual feedback and enhanced protection.

Both switches are single-pole, single-throw (SPST) and feature an illuminated design, providing clear status indication. Their quick-connect terminals ensure efficient and secure installation, reducing setup time and enhancing reliability.

With an IP66 rating, the TRUCOMPONENTS 751597 and 751598 offer superior protection against dust and water ingress, making them suitable for demanding environments.

Constructed with high-quality materials, these rocker switches deliver exceptional durability and long-lasting performance, ideal for use in industrial machinery, automotive systems, and consumer electronics.

Description Image Product Buy Pricing (Ex VAT) Illumination Colour(s) Action Bulb Type Connection Type Contact Resistance Dielectric Strength Front panel thickness Functions Illumination Type Insulation Resistance IP Rating Max. Current Max. temperature Min. temperature Print motif Recess diameter Type Voltage Rating
TruComponents 751597 Rocker switch,Off/On,SPST,Illuminated,Quick Connect,IP66
TruComponents 751597 Rocker switch,Off/On,SPST,Illuminated,Quick Connect,IP66
Standard range
Order code: 75-1597
MPN: 751597

Available to back orderPlease contact us for lead time
2+ £3.70
5+ £3.44
10+ £3.21
25+ £3.01
50+ £2.83
100+ £2.72
Price per unit Ex VAT 		Green 1 x Off/On LED (monochrome) Solder tag max. 50mΩ 1500V AC 2.5mm latch Area illumination 100 IP65 20A +85°C -20°C None 20.2mm Rocker Switch 12V DC
TruComponents 751598 Rocker switch,Off/On,SPST,Illuminated,Quick Connect,IP66
TruComponents 751598 Rocker switch,Off/On,SPST,Illuminated,Quick Connect,IP66
Standard range
Order code: 75-1598
MPN: 751598

Available to back orderPlease contact us for lead time
1+ £4.07
5+ £3.78
10+ £3.52
25+ £3.30
50+ £3.11
100+ £2.99
Price per unit Ex VAT 		Blue 1 x Off/On LED (monochrome) Solder tag max. 50mΩ 1500V AC 2.5mm latch Area illumination 100 IP65 20A +85°C -20°C None 20.2mm Rocker Switch 12V DC
