TruComponents 783101 Rotary Switch PCB 24P Non-illum Solder IP40

TruComponents
Order Code:

78-3101

Brand: TruComponents MPN: 783101 EAN-13: 4064161162935
Qty Unit Price (Ex VAT)
5+ £1.25
10+ £1.20
25+ £1.17
50+ £1.15
100+ £1.12
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
622 in stock, despatched in 4 working days

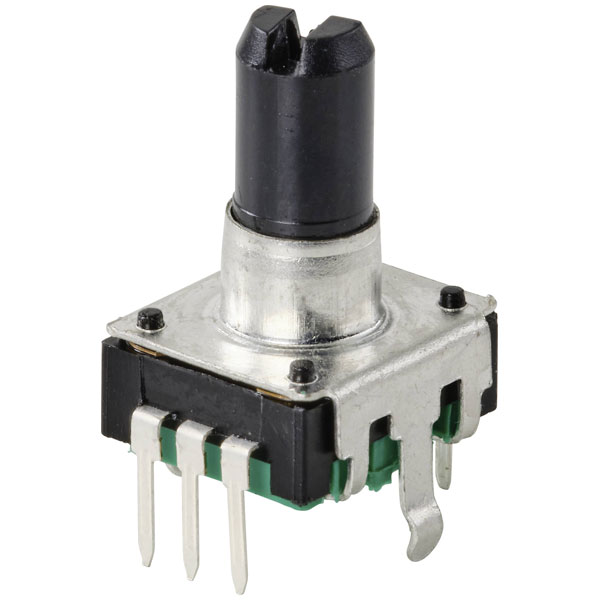

The TruComponents TC-9415588 rotary switch is a versatile component featuring a 24-position configuration suitable for a variety of electronic applications. Operating at 5 V and 0.5 mA, this non-illuminated rotary switch provides reliable performance with a full 360-degree rotation. Ideal for printed circuit board (PCB) use, it features solder terminals and an IP40 rating, making it perfect for integration into consumer electronics and control panels.
Type Rotary Switch
Current Rating (Amps) 0.5mA
Angle of Throw 360 °
Axle Ø 6mm
Connection Solder pins
Contact Material Tin plated
Contact Resistance ≤ 100mO
Dim (L x W x H) 14 x 14 x 20 mm
Electrical lifespan 20000 cycles
Functions Contact
Height 20mm
Length 14mm
Lighting type None
Max. temperature 70°C
Min. temperature -10°C
Misc Attribute EC12S-H6-20F7-24P-24CC
Plastic free packaging Plastic-free packaging
Switch position 1 x Off/On
Switching Voltage 5V
Width 14mm
