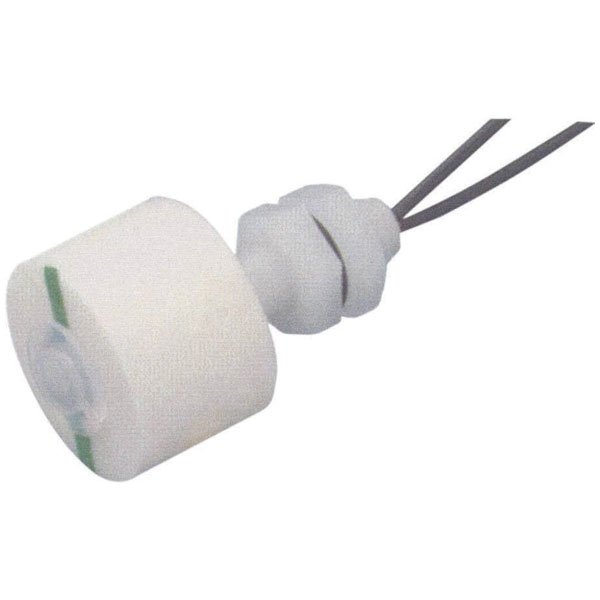

TruComponents 783066 Float Switch Panel Mount SPST Non-illum Screw IP64

The TruComponents FS-3101 Float Switch, part number FS-3101, is a reliable panel mount sensor designed for detecting liquid levels. This SPST non-illuminated switch offers a screw mounting configuration and comes in a sleek colour, ensuring seamless integration into various environments. With an IP64 rating and a capability of 200 V AC at 0.5 A, it's perfect for applications in fluid management systems, including tanks and reservoirs, requiring precise fill level detection.

Type	Float Switch
Cable Length	30.00cm
Maximum Voltage	200V AC
Current Rating	0.5A
Connection	Open end cable
IP Rating	IP64
Material	Polypropylene
Maximum Current	0.5A
Maximum Temperature	+80°C
Min. temperature	-20°C
Misc Attribute	FS-3101
Power	10W
Switching Voltage	200V AC
Thread Size	M8
